EchoPanel® Ohm

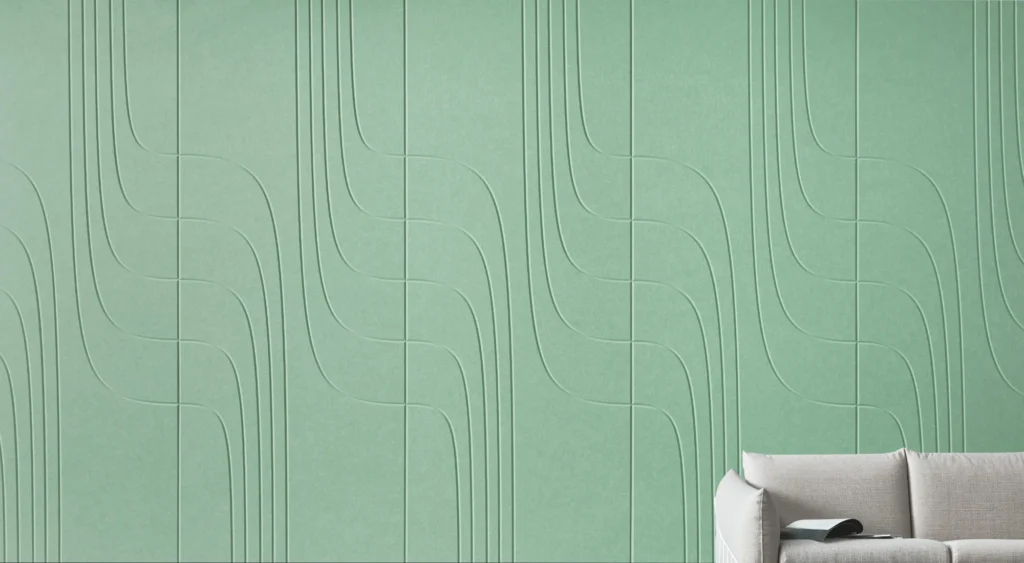

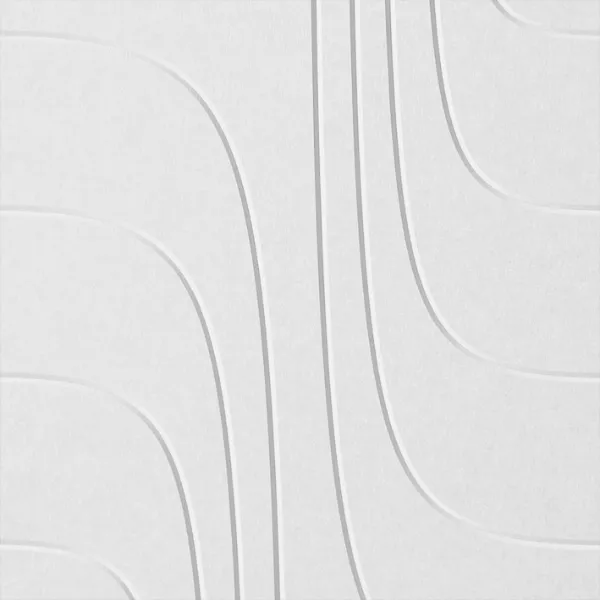

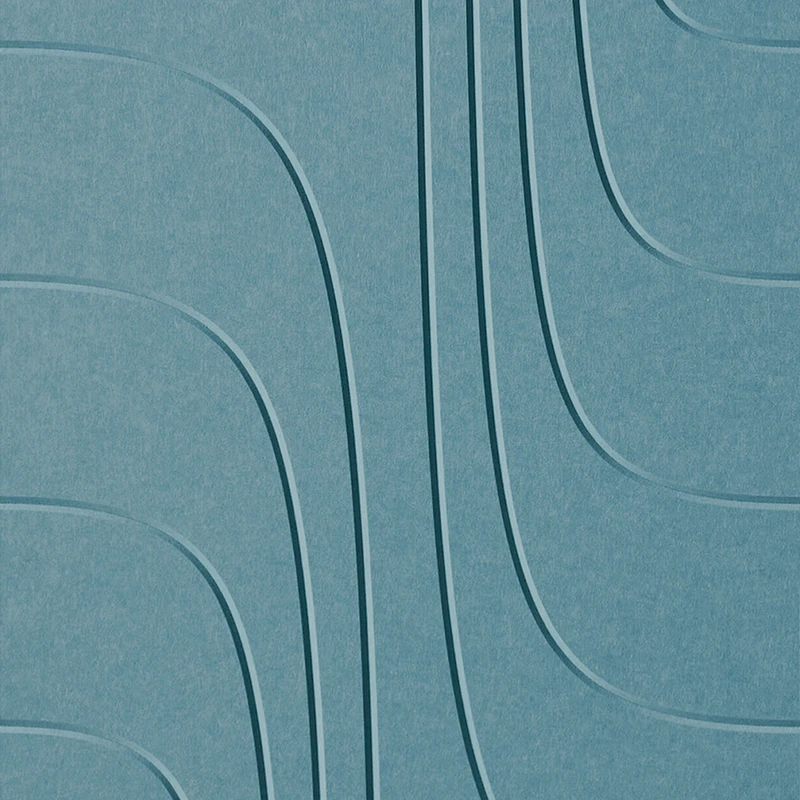

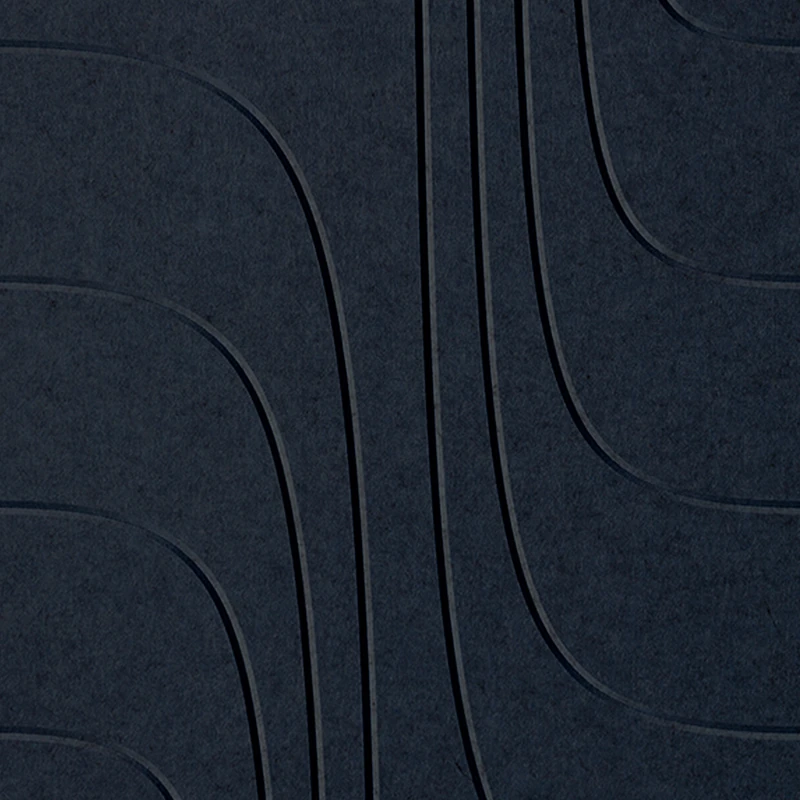

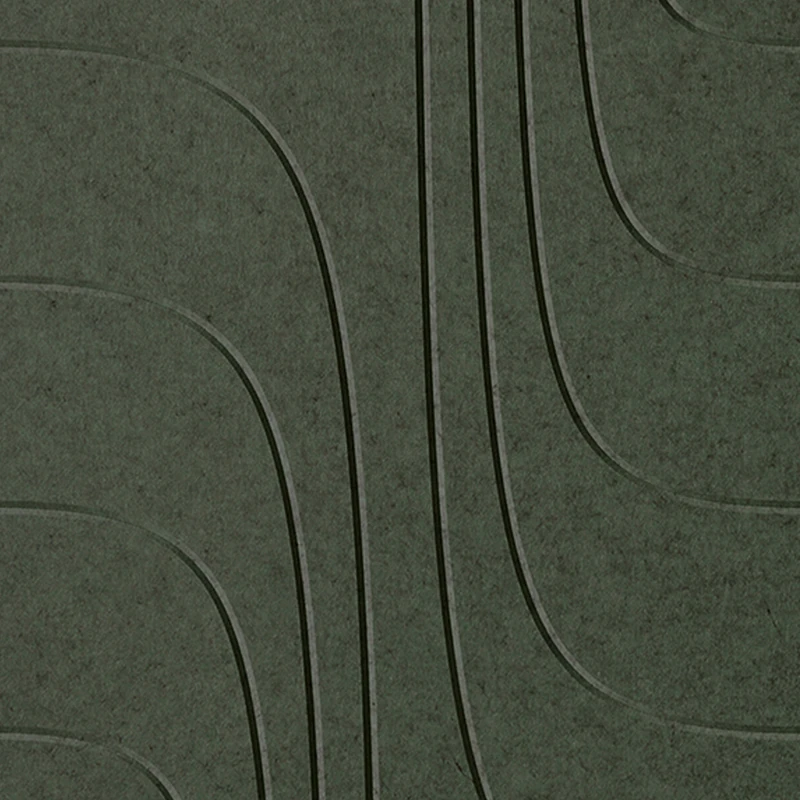

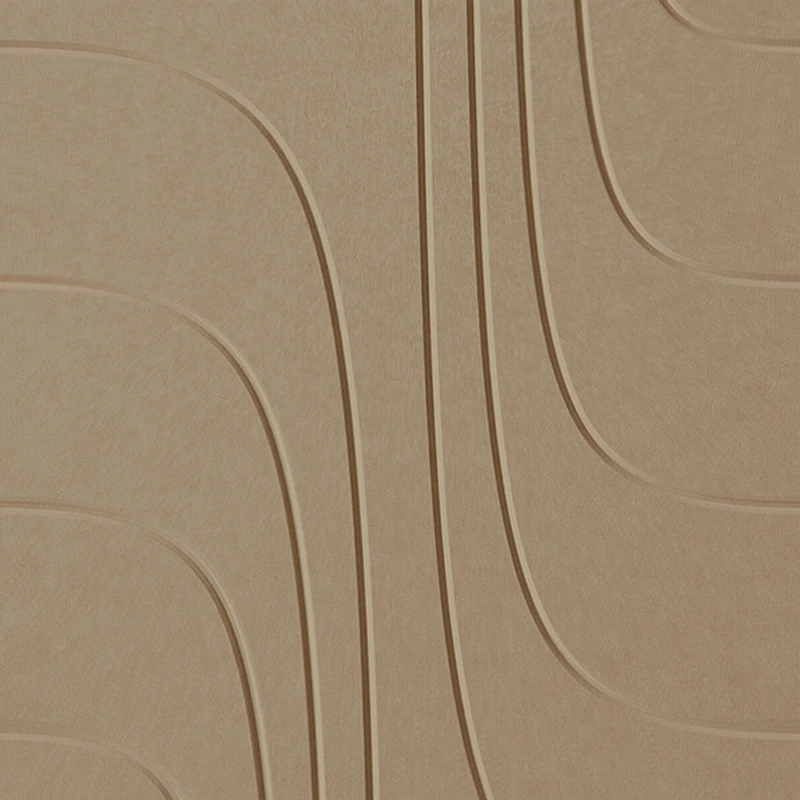

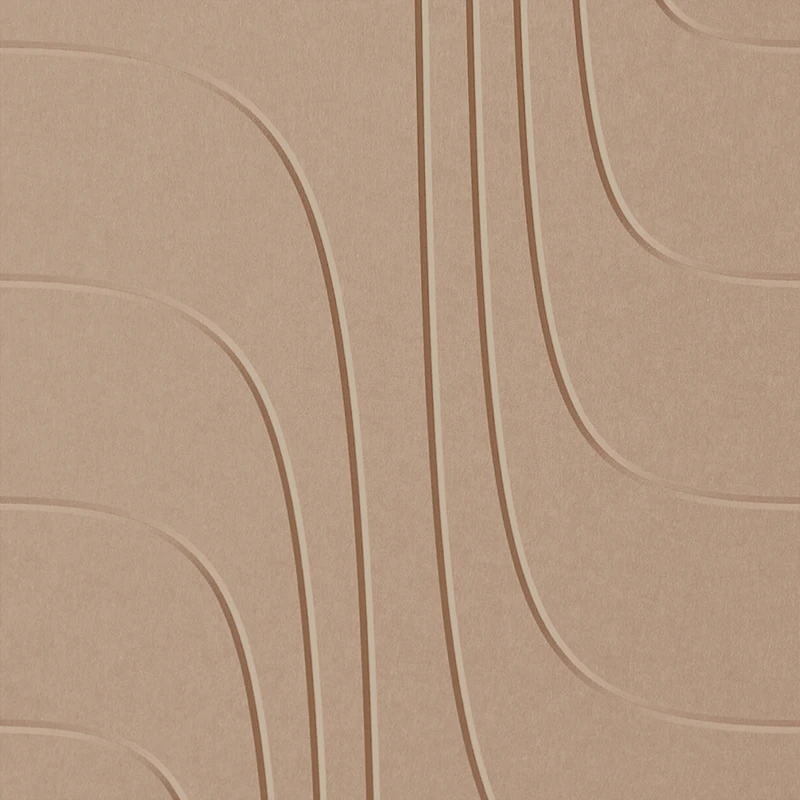

EchoPanel® Ohm is a precision cut acoustic panel with contoured linework reflecting the ebb and flow of sound waves.

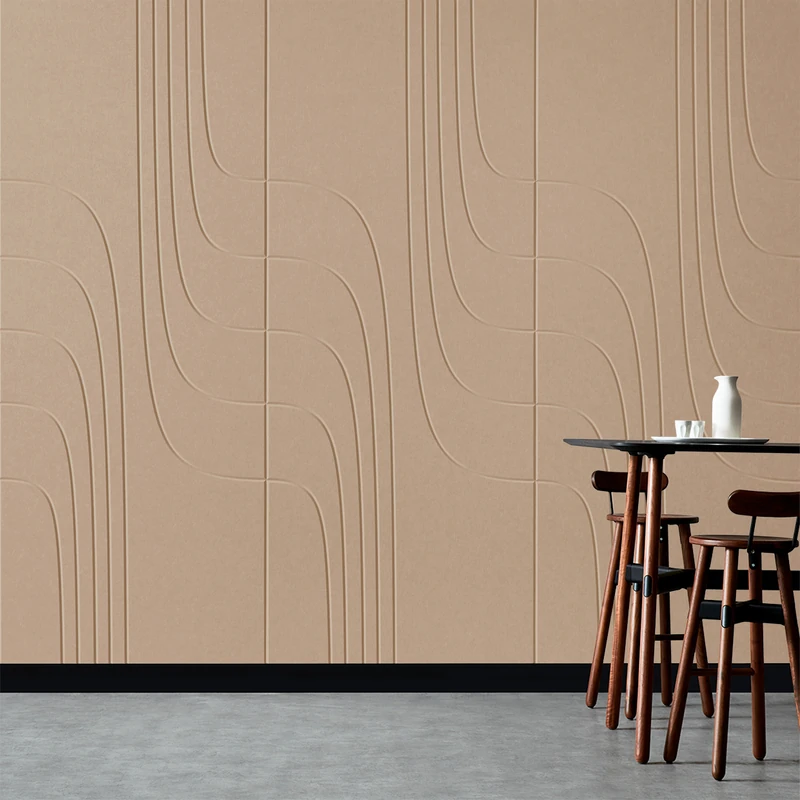

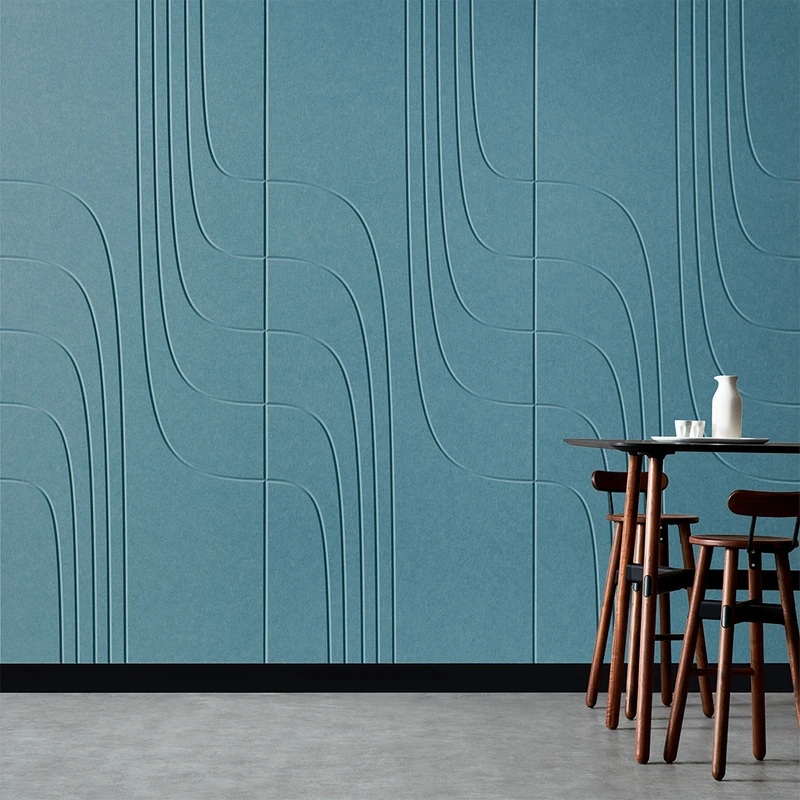

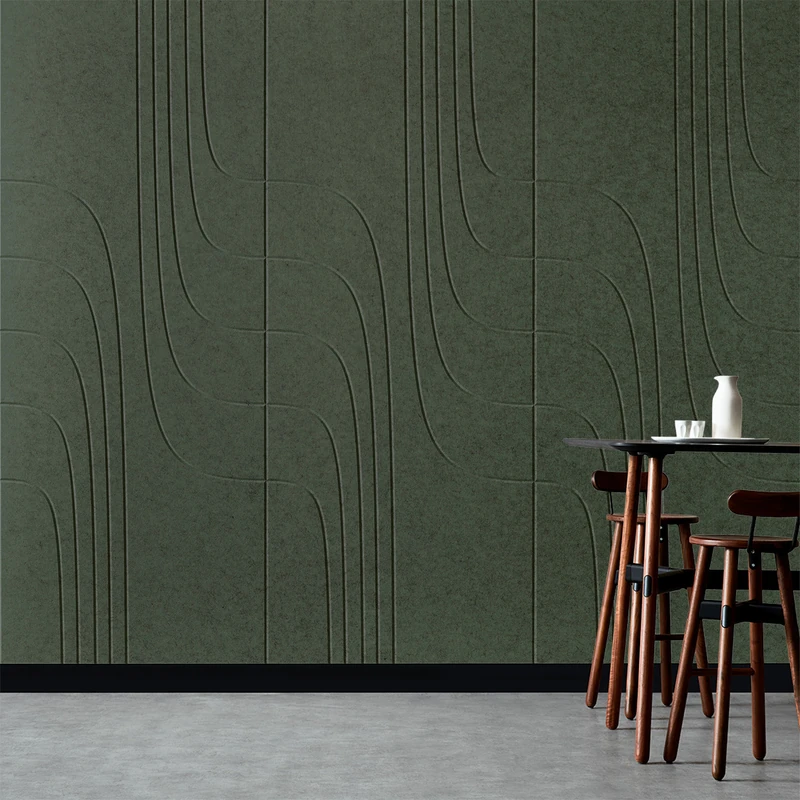

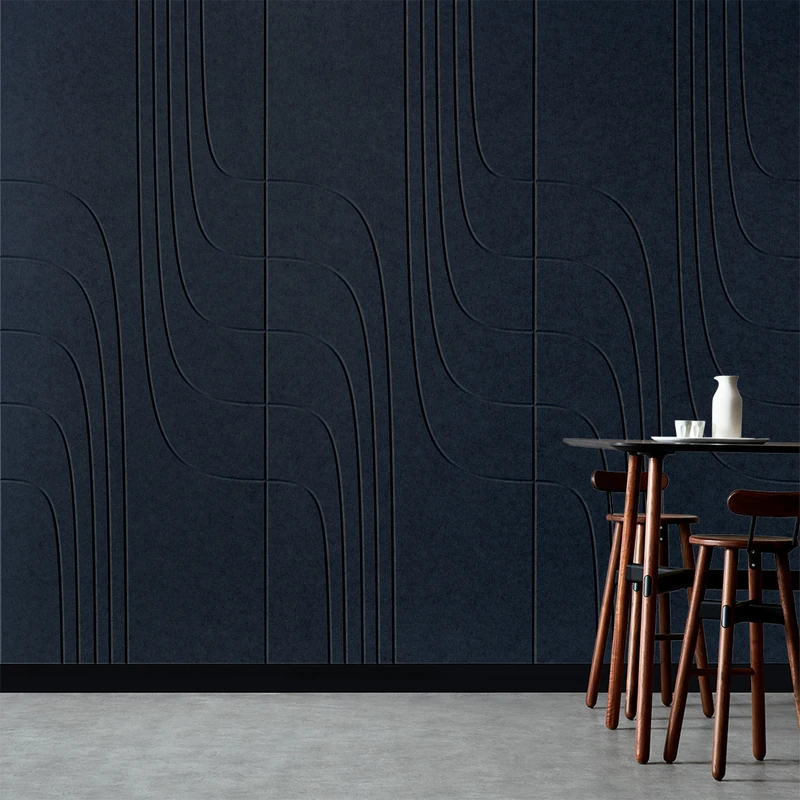

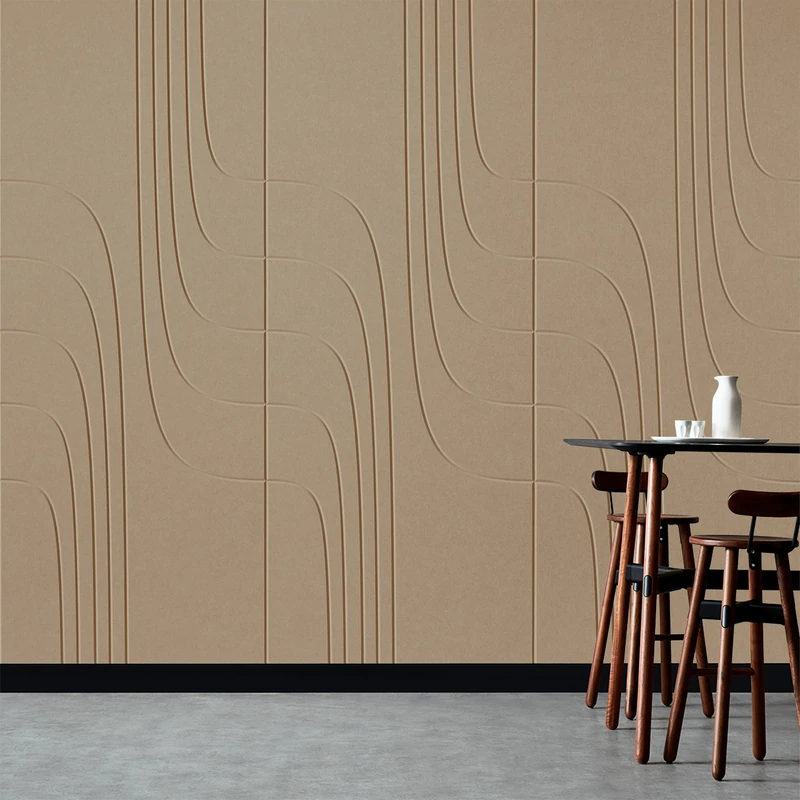

Featuring a bevelled edge, Ohm is ideal for panel-to-panel wall applications and is available in 12mm and 24mm thickness depending on acoustic requirements. EchoPanel® is a superior upcycled product with a 10-year life expectancy, after which the material is 100% recyclable. Achieving numerous environmental certifications including Global GreenTag™ certified with a Platinum Product Health Declaration, low Volatile Organic Compounds (VOC), Red-List free, and has published ingredient transparency through Declare.
Product Specifications
Designer
Woven Image
Dimensions
Material (Composition)
100% PET (60% post-consumer recycled)
Fire Test Result:
AS 1530.3 ISO 9705: Group 1 GB 8624 B1 BS EN 13501.1: Classification B – s1, d0
Sound Absorption Test Method
AS ISO 11654: 2002 (2016) AS ISO 354: 2006 (R2016) ASTM C423 – 17
Weighted Alpha Coefficient (αw)
Direct fix: 0.30 (MH), 20mm air gap: 0.45 (MH), 50mm air gap: 0.60 (MH)
Noise Reduction Coefficient (NRC)
Direct fix: 0.45, 20mm air gap: 0.60, 50mm air gap: 0.75
Sound Absorption Class
D (Direct fix)
D (20mm air gap)
C (50mm air gap)
EchoPanel® Ohm
Request a Quote
Are you interested in our EchoPanel® Ohm, require more information or installation? No problem! Just fill out our contact form with as much details as possible and a team member will get back to you shortly!
