EchoPanel® Meridian

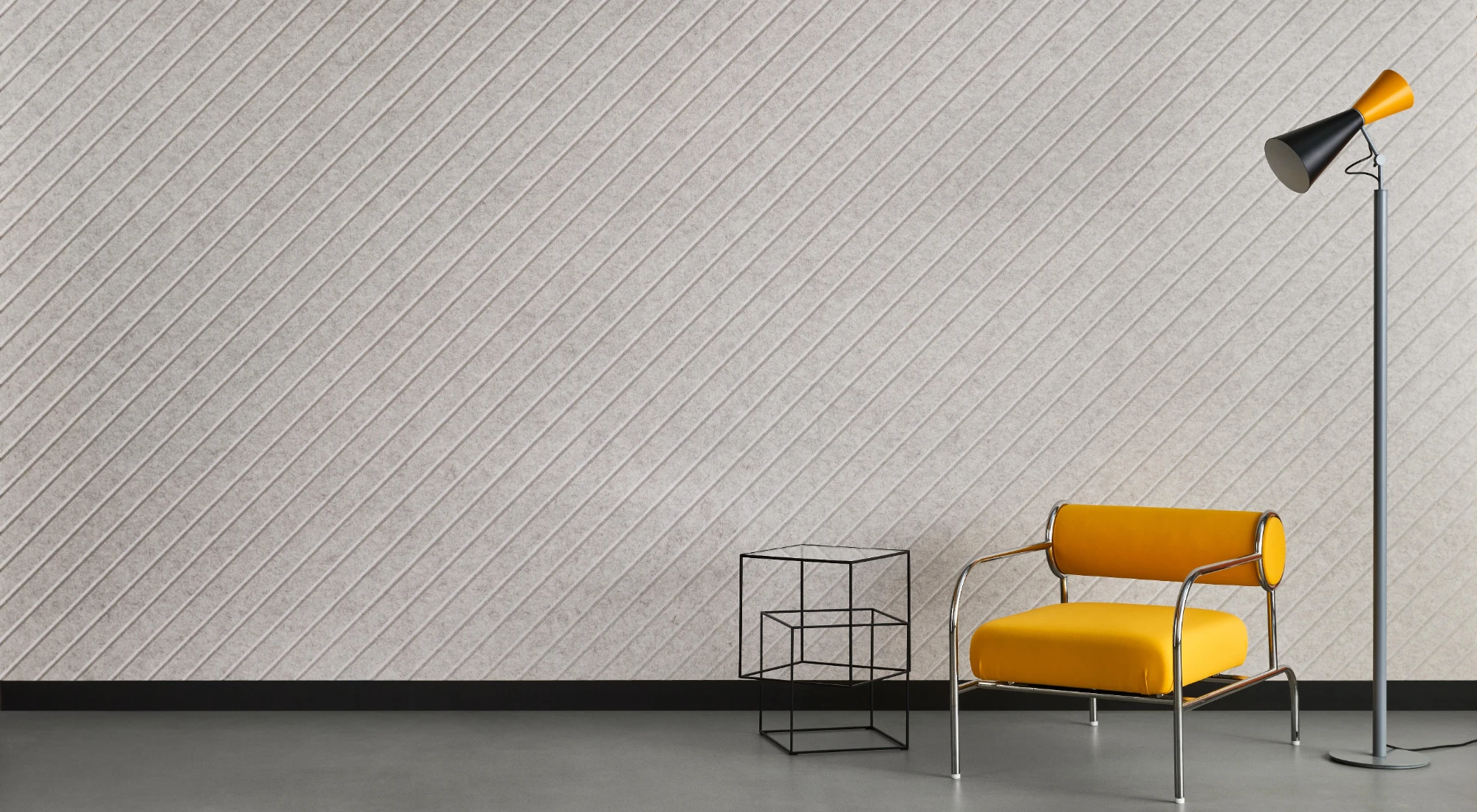

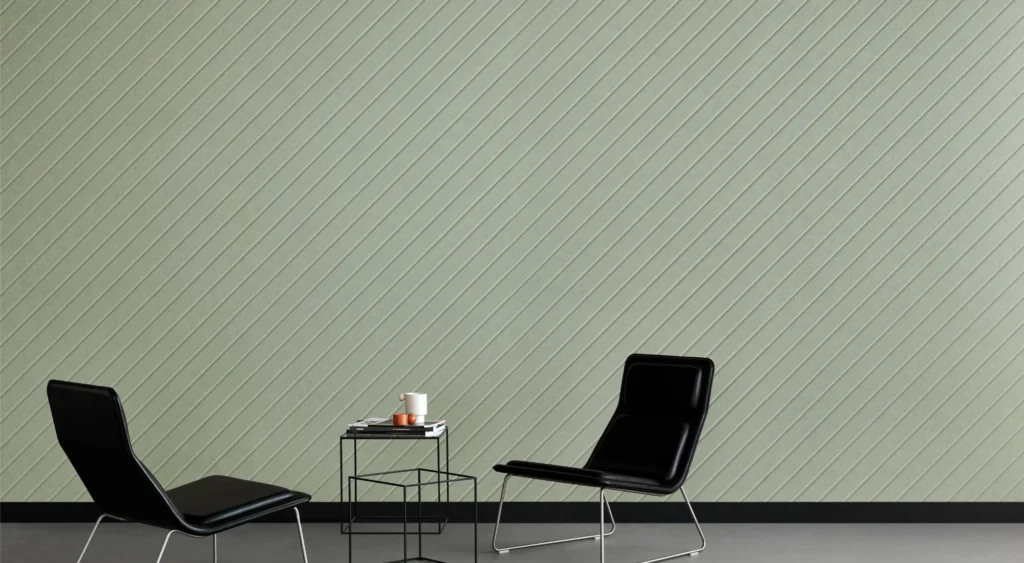

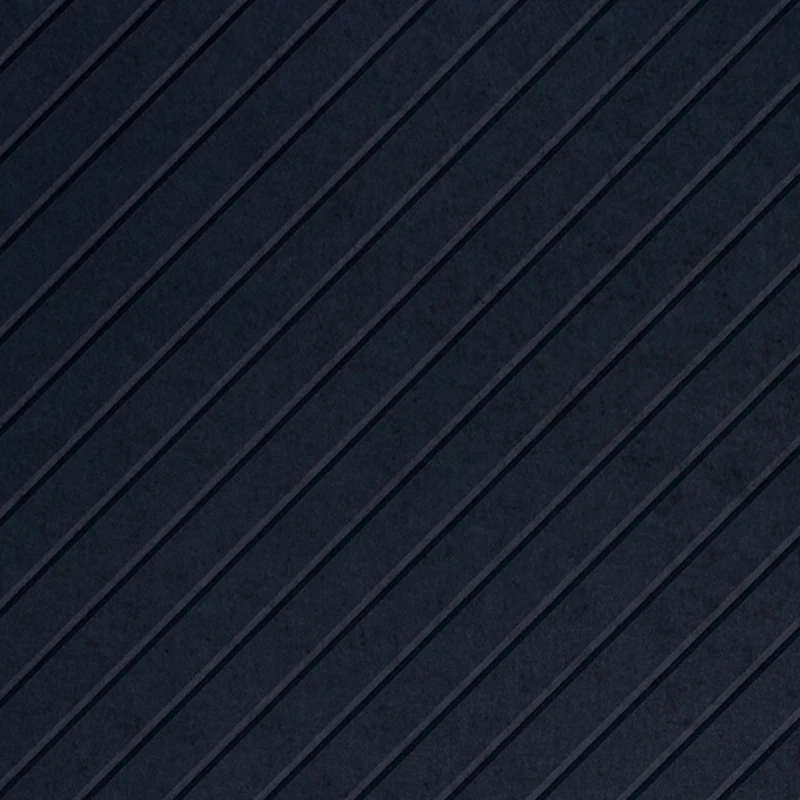

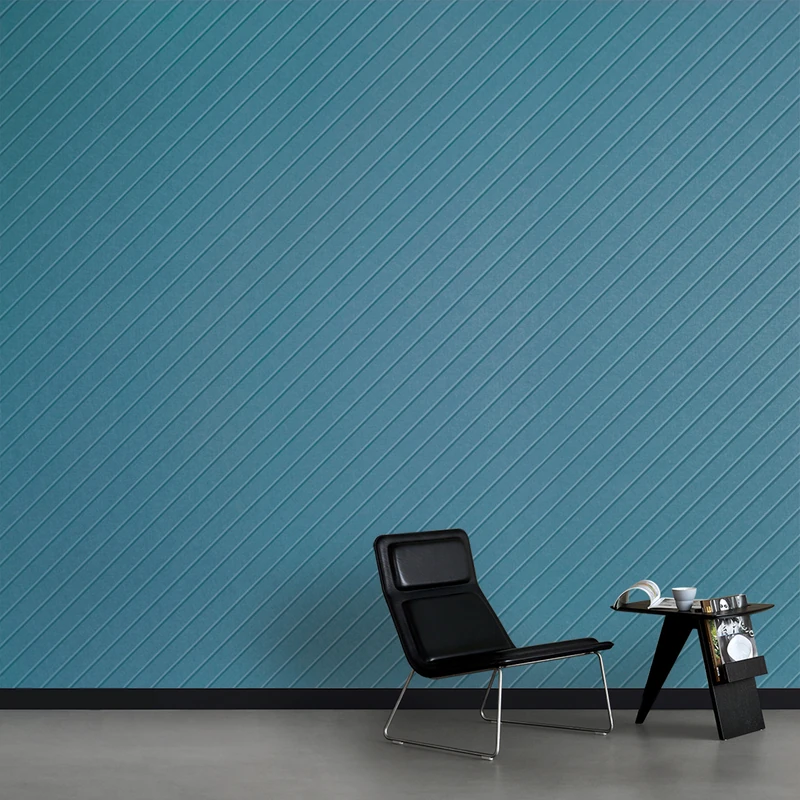

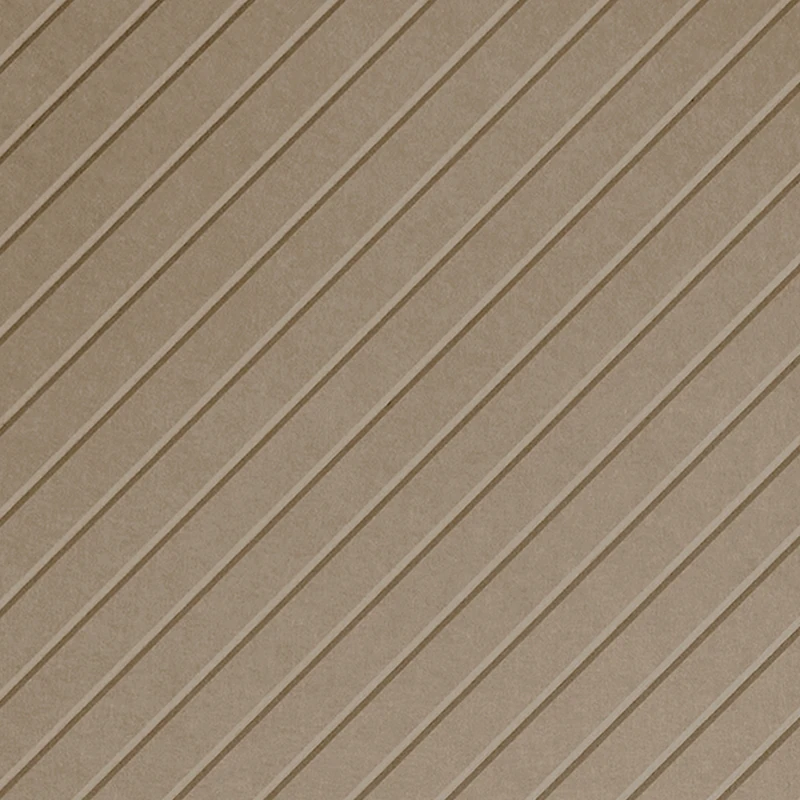

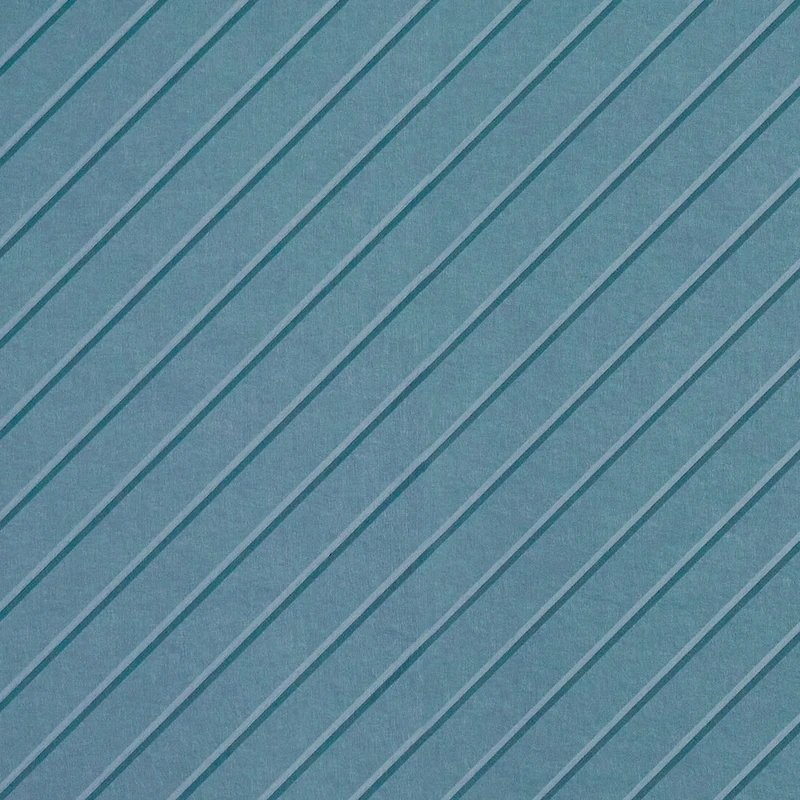

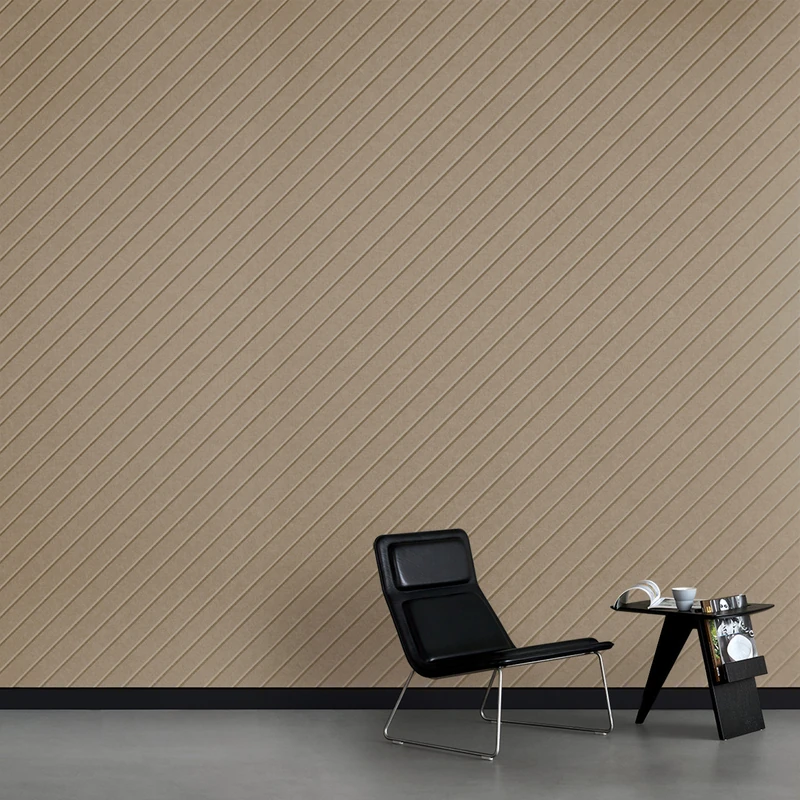

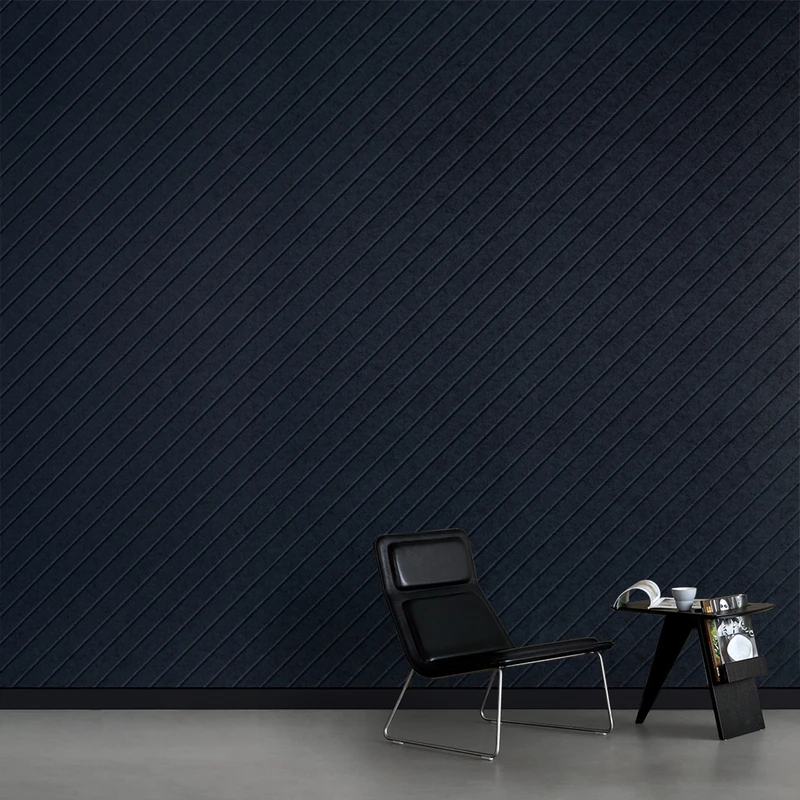

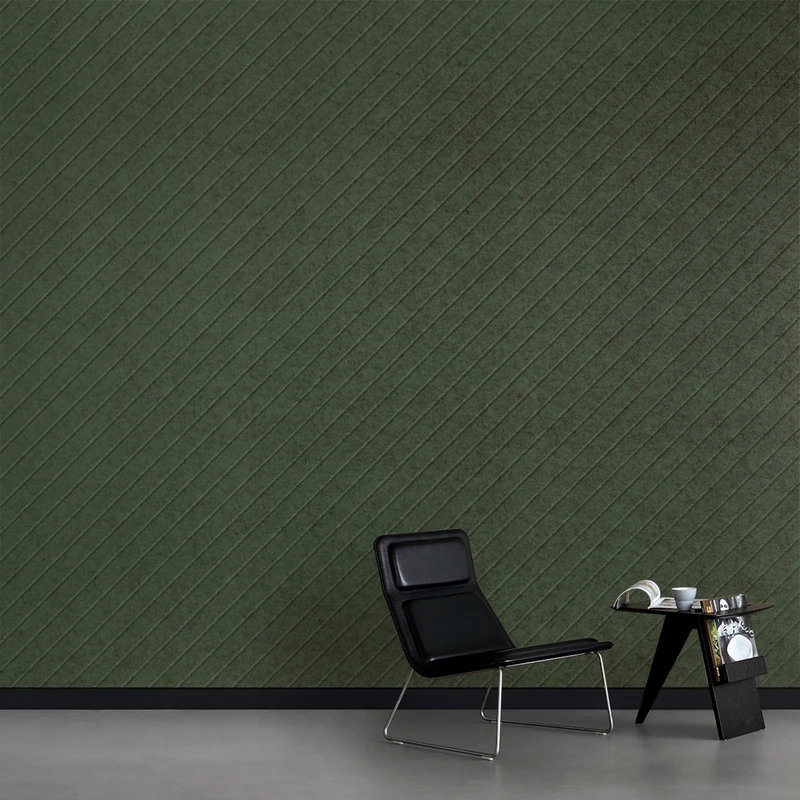

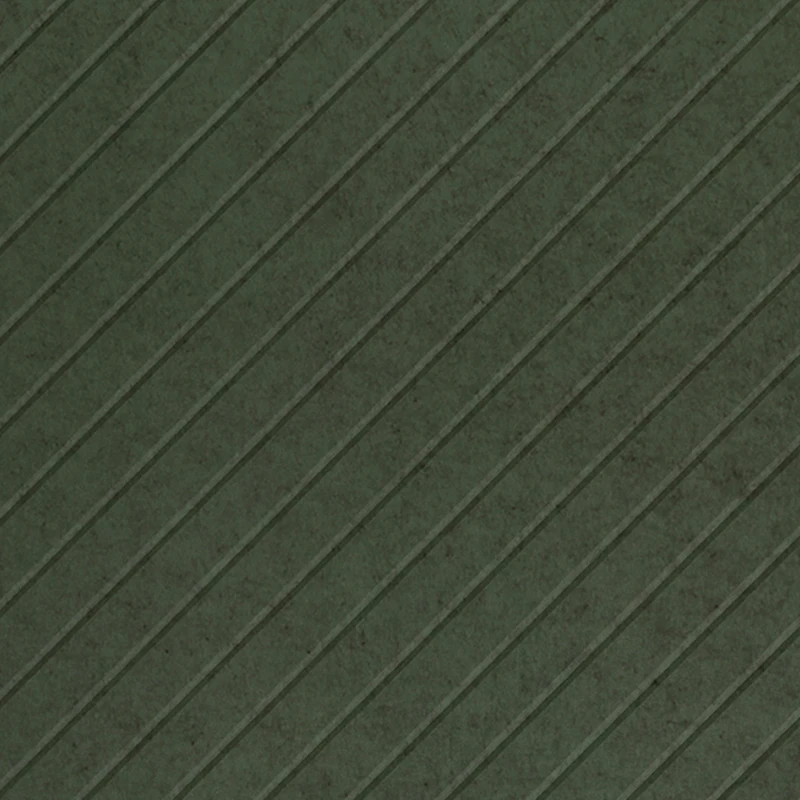

EchoPanel® Meridian acoustic panels feature precision cut v-groove linework at a 45 degree angle.
Made using 60% post-consumer recycled PET plastic bottles, these acoustic wall panels achieve the same environmental certifications as EchoPanel® 12mm and are recognised by International Green Building Tools including WELL™, LEED®, GreenStar® and BREEAM®. For higher acoustic performance, EchoPanel® Meridian is also available in EchoPanel® 24mm.
Product Specifications
Designer
Woven Image
Dimensions
Material (Composition)
100% PET (60% post-consumer recycled)
Fire Test Result:
AS 1530.3 BS EN 13501.1: Classification B – s1, d0 GB 8624 B1 ISO 9705: Group 1
Sound Absorption Test Method
AS ISO 354: 2006 (R2016) AS ISO 11654: 2002 (2016) ASTM C423 – 17
Weighted Alpha Coefficient (αw)
Direct fix: 0.30 (MH), 20mm air gap: 0.45 (MH), 50mm air gap: 0.60 (MH)
Noise Reduction Coefficient (NRC)
Direct fix: 0.45, 20mm air gap: 0.60, 50mm air gap: 0.75
Sound Absorption Class
D (Direct fix)
D (20mm air gap)
C (50mm air gap)
