EchoPanel® Longitude

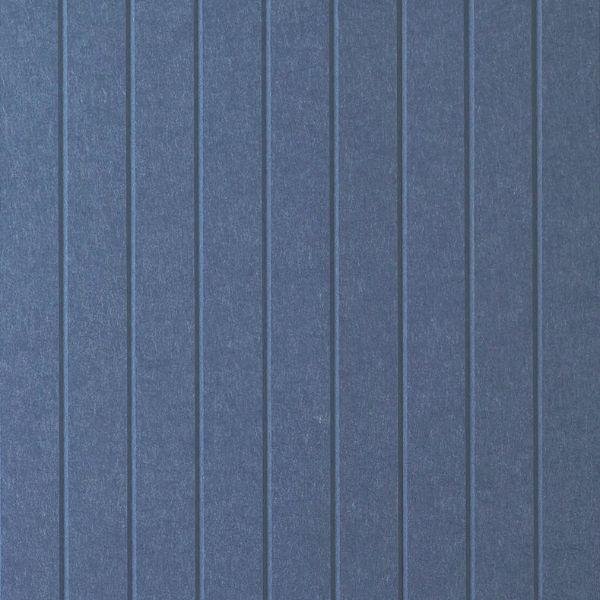

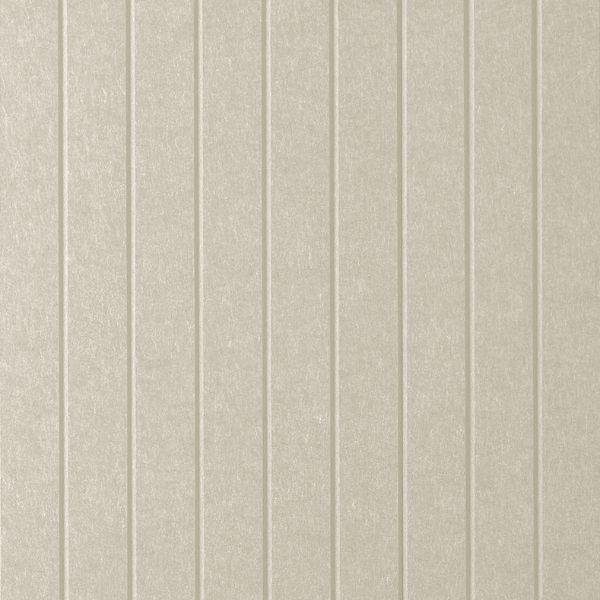

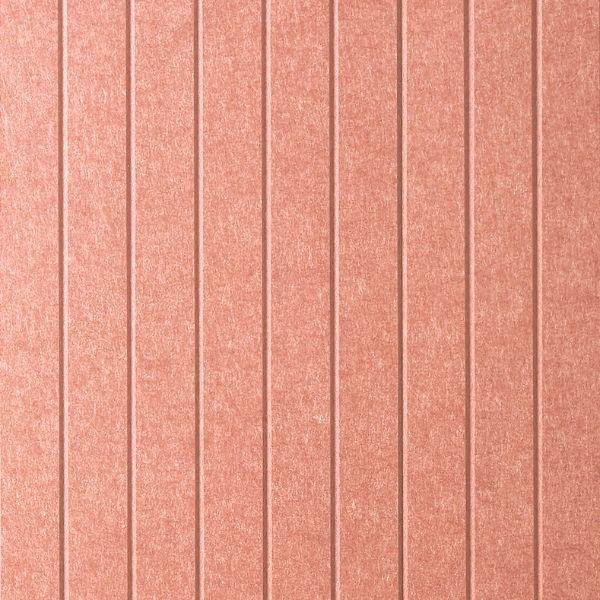

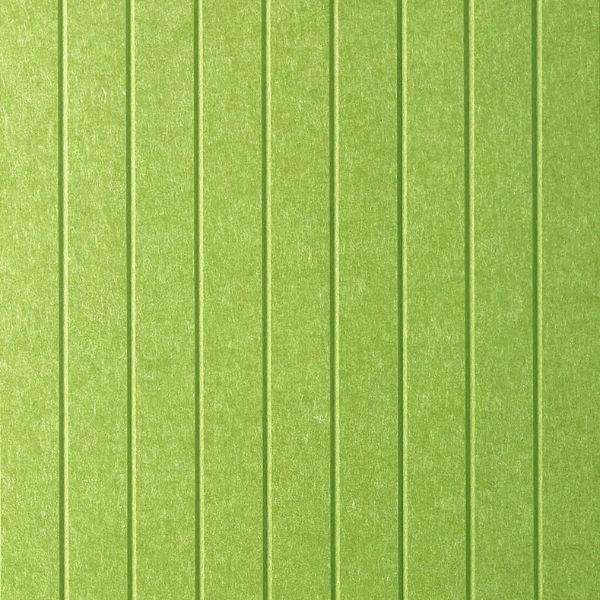

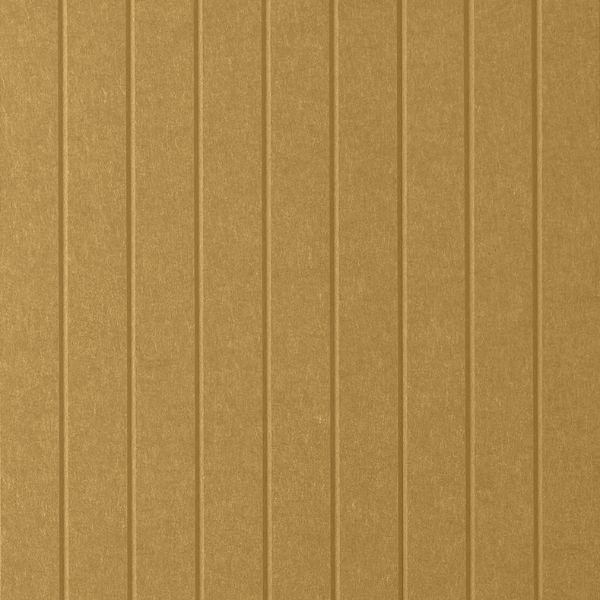

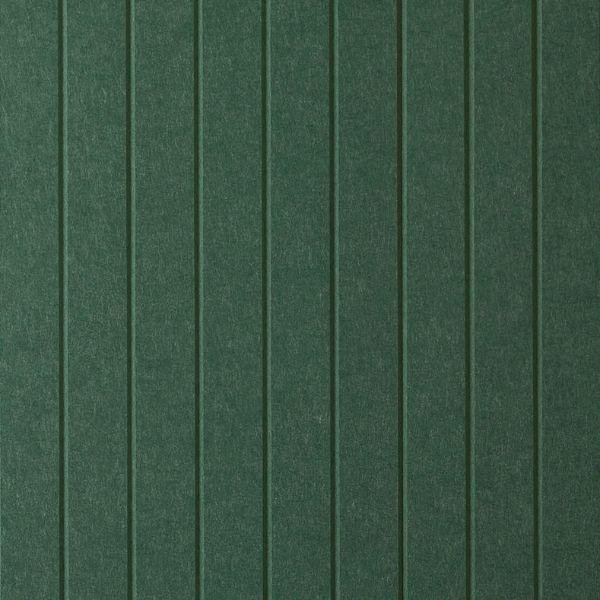

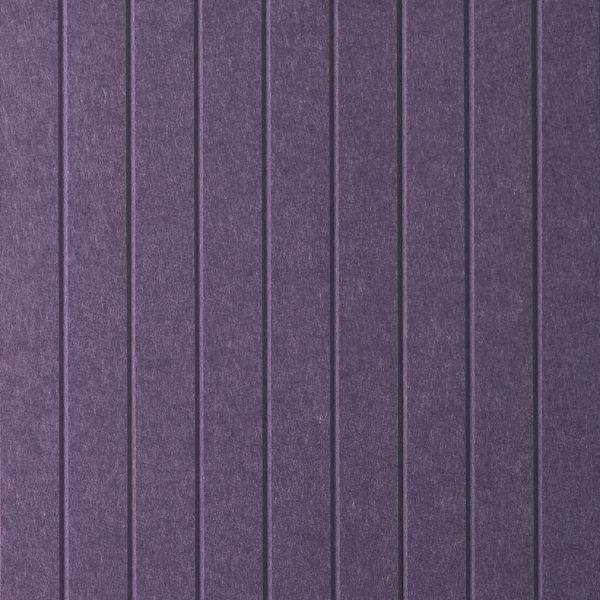

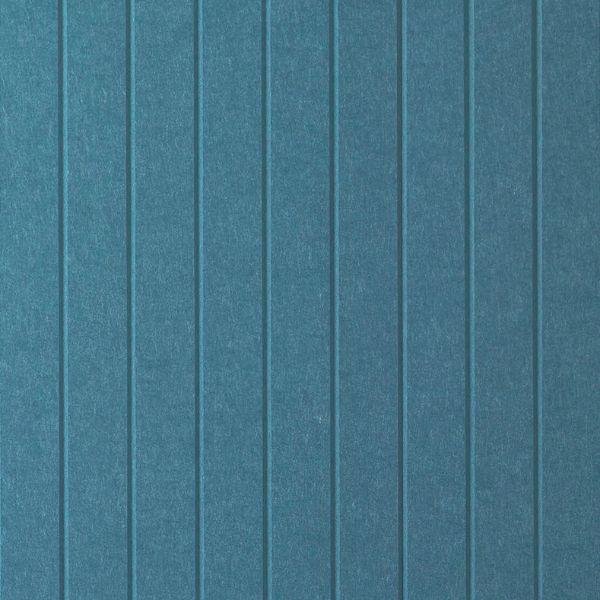

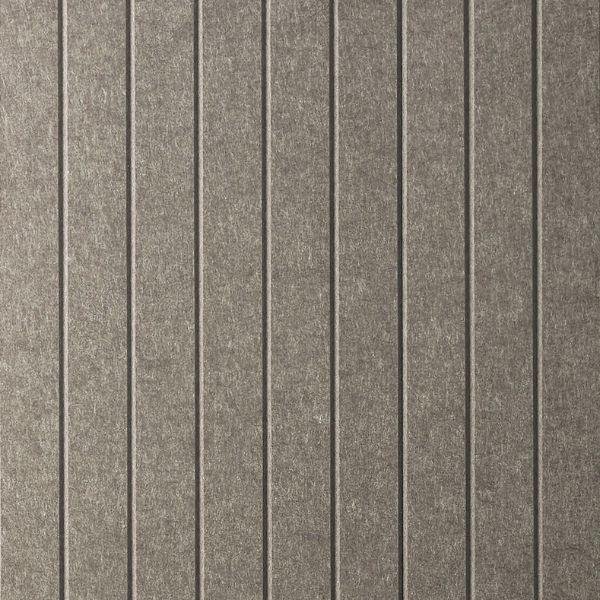

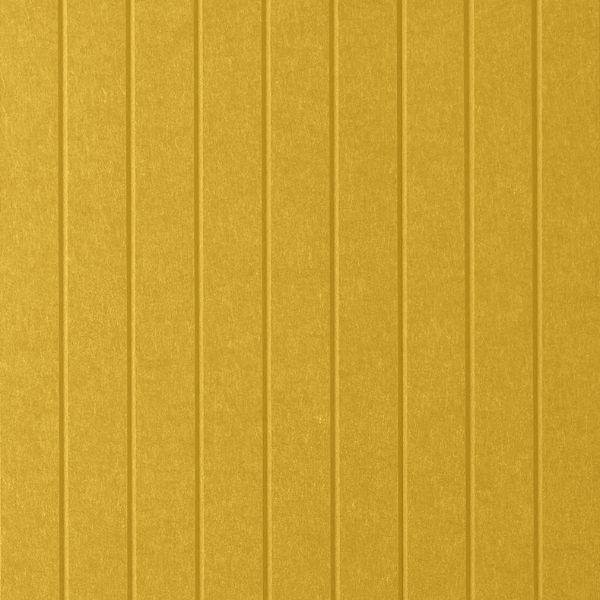

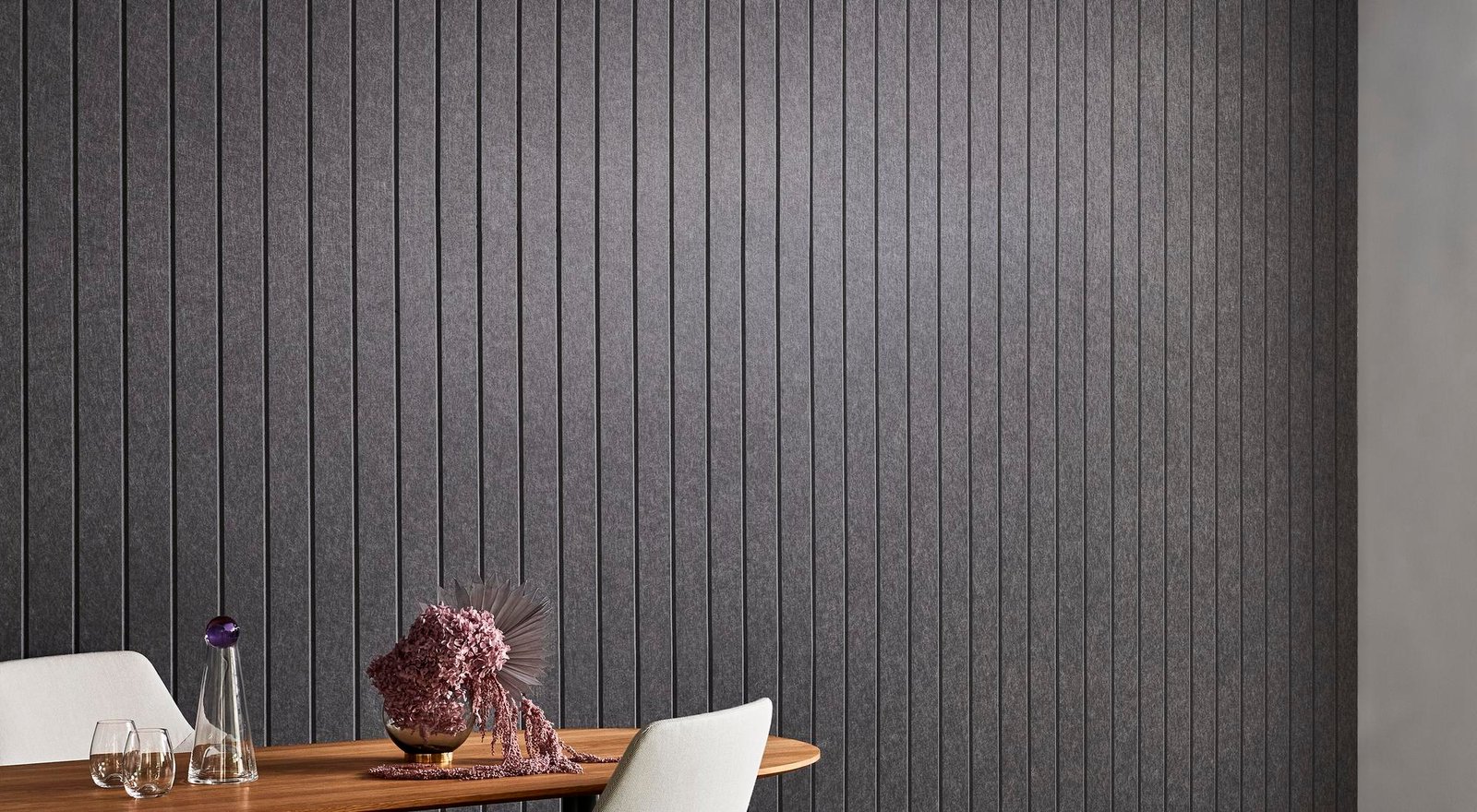

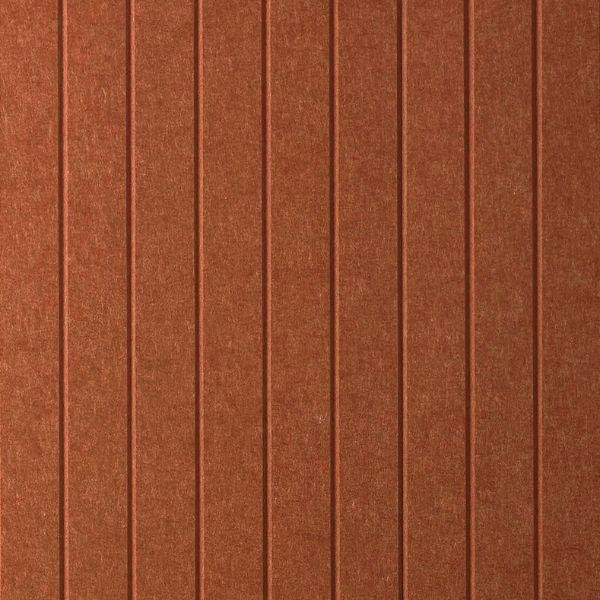

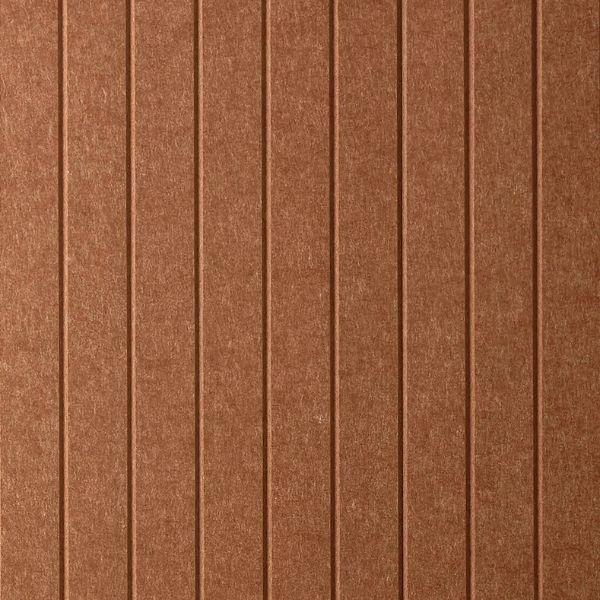

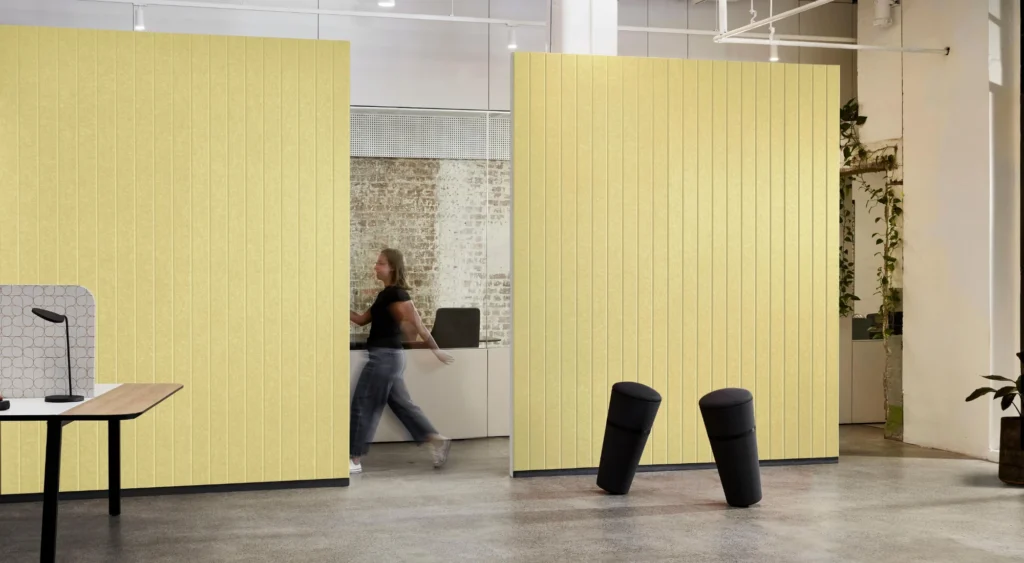

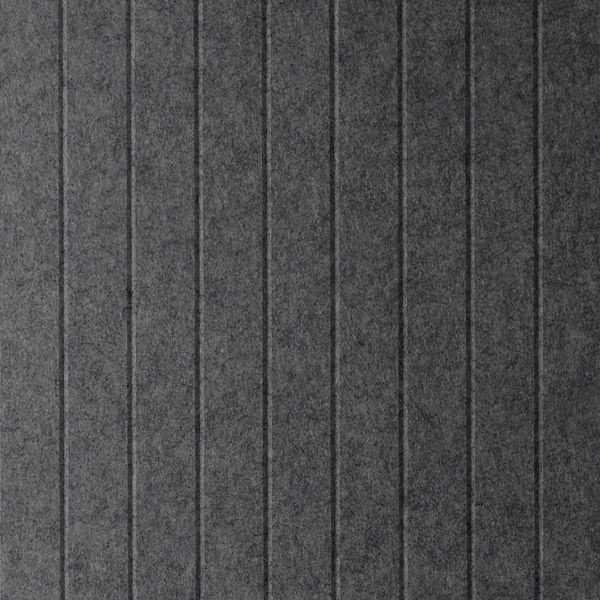

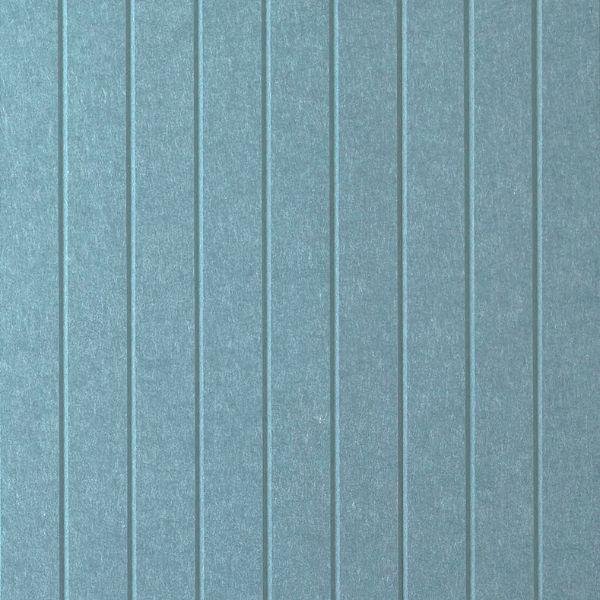

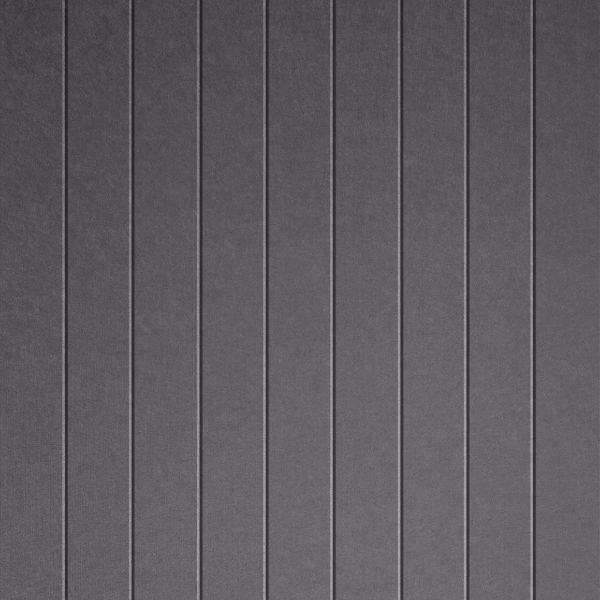

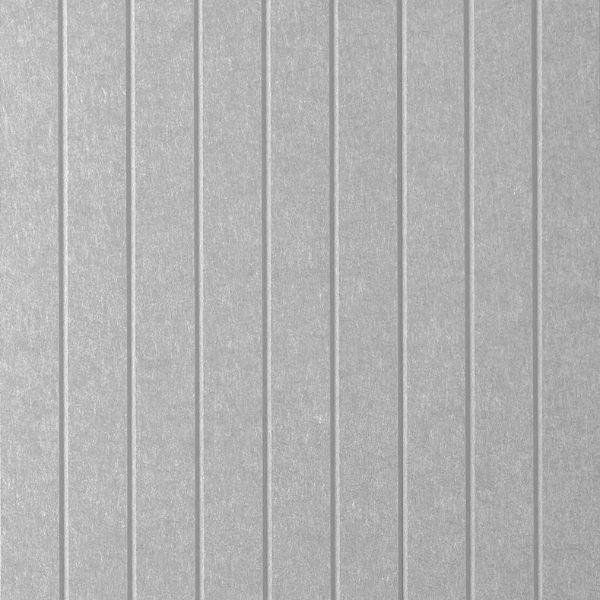

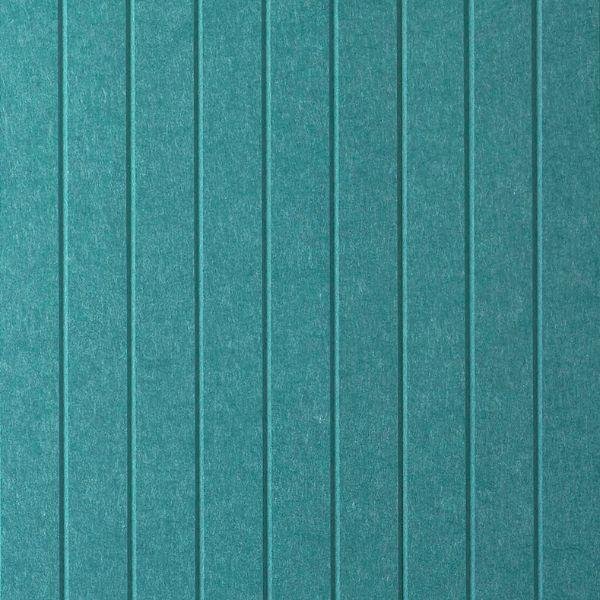

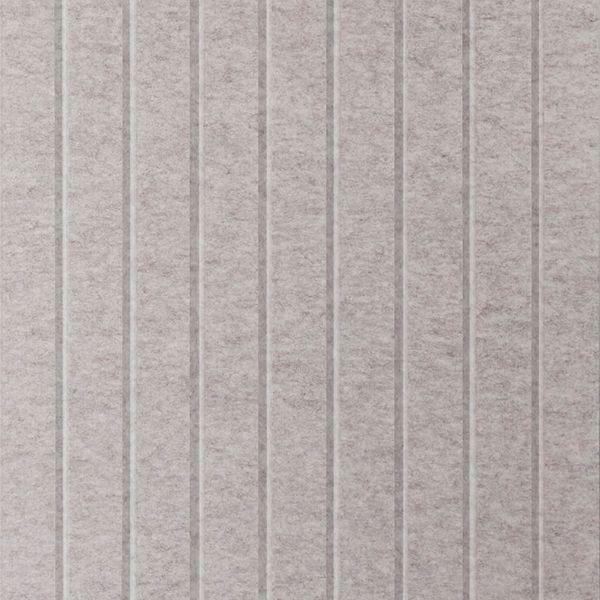

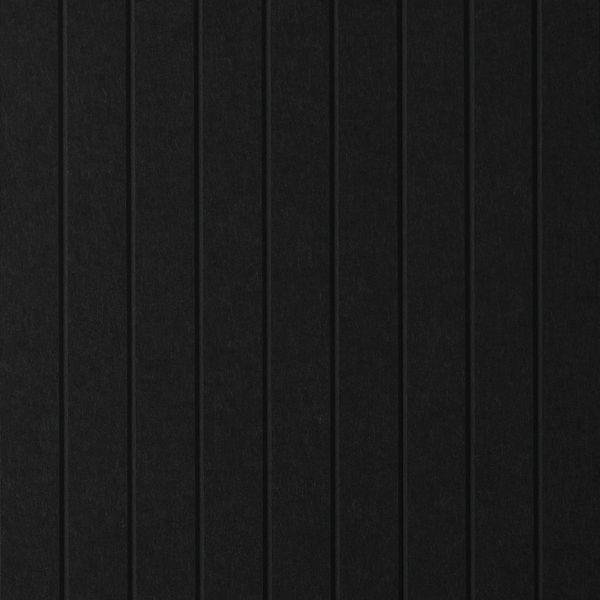

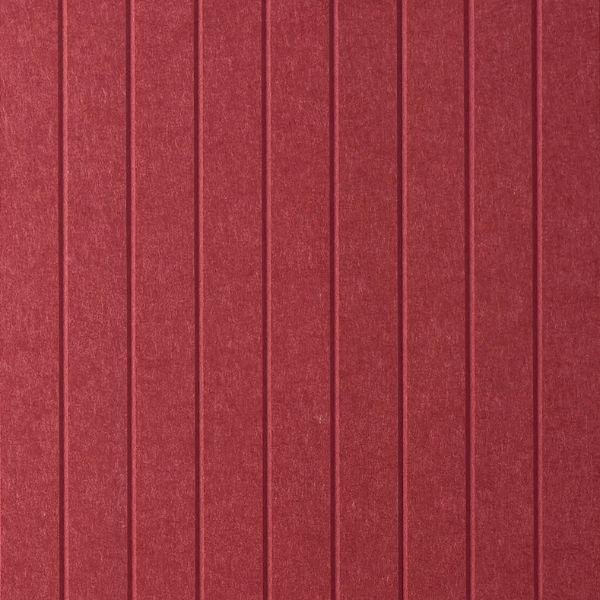

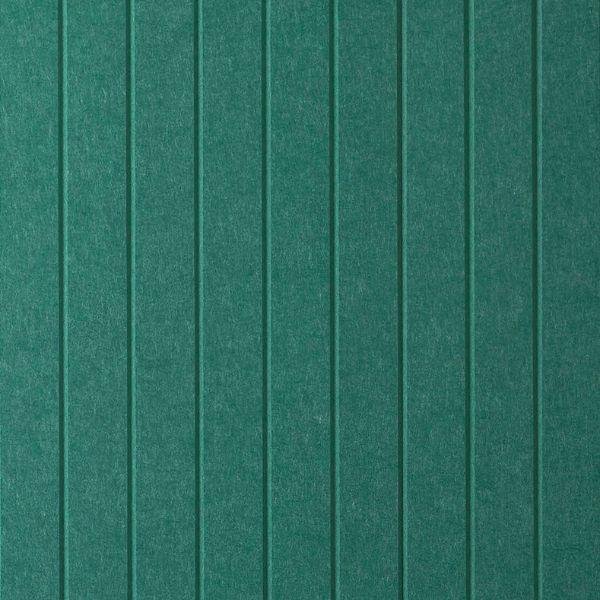

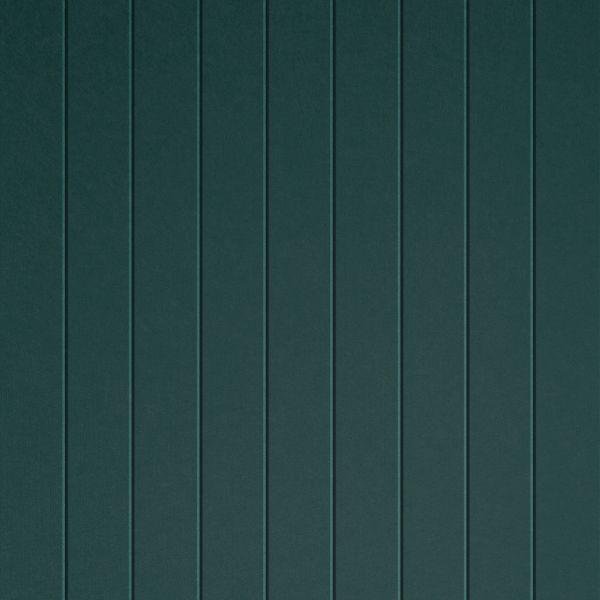

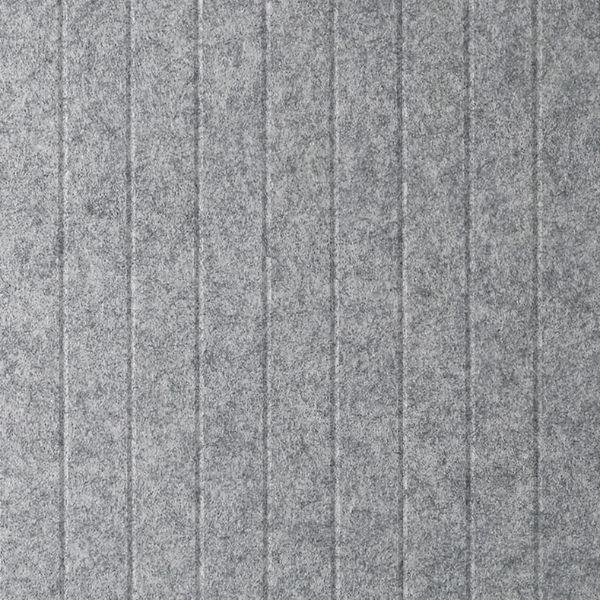

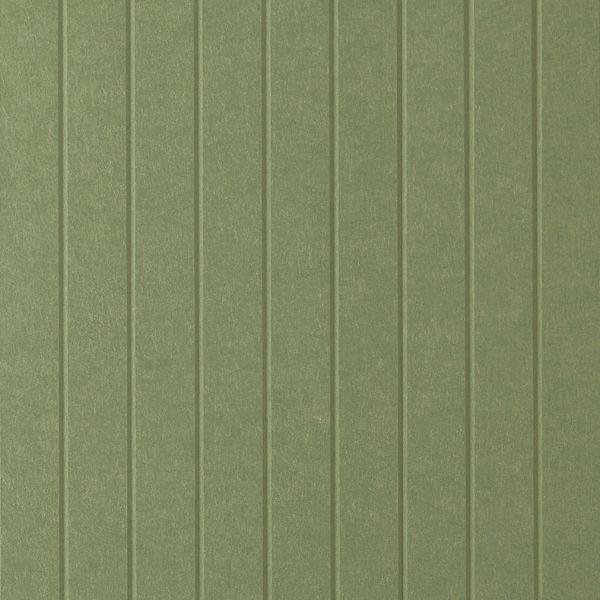

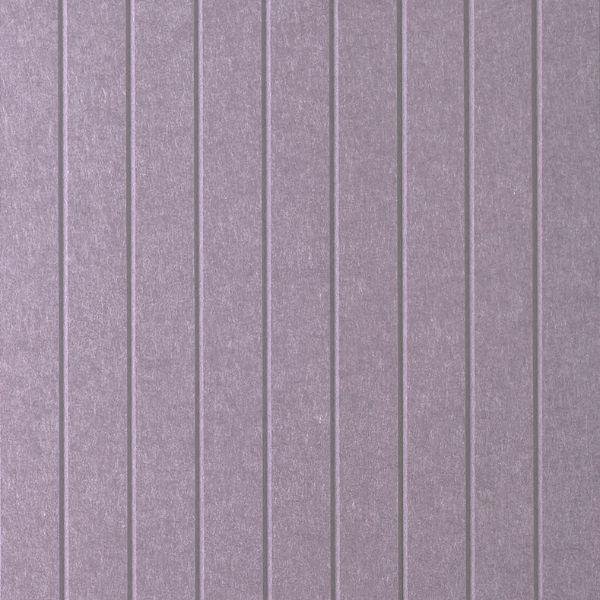

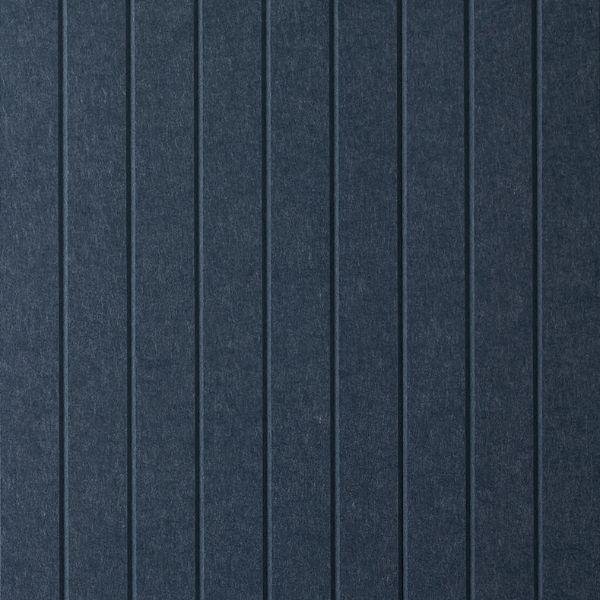

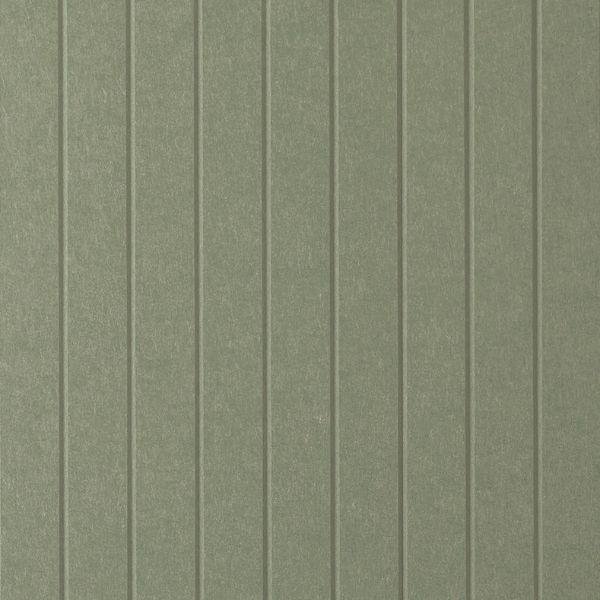

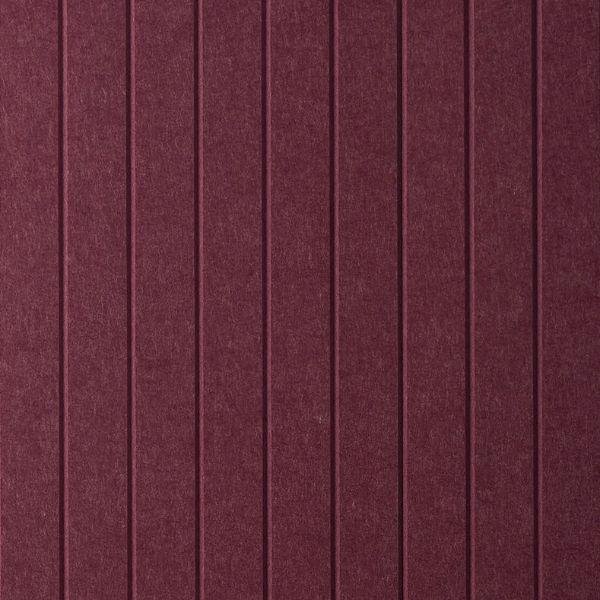

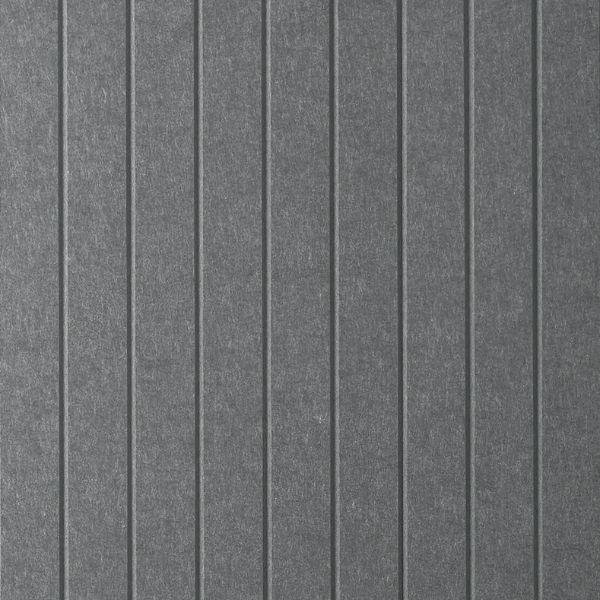

Reminiscent of wood panelling, EchoPanel® Longitude is characterised by refined v-groove cuts that bring an understated three-dimensional element to these acoustic wall panels.
Panels can be joined seamlessly thanks to Longitudes bevel cut edge, and are available in the full suite of EchoPanel® 12mm colours, making them easy to incorporate in most interior fit-out schemes. For higher acoustic performance, EchoPanel® Longitude is also available in EchoPanel® 24mm.
Product Specifications
Designer
Woven Image
Dimensions
Material (Composition)
100% PET (60% post-consumer recycled)
Fire Test Result:
AS 1530.3 BS EN 13501.1: Classification B – s1, d0 ISO 9705: Group 1 GB 8624 B1 BS EN 45545-2 + A1 Annex C: CIT: 0.05
Sound Absorption Test Method
AS ISO 354: 2006 (R2016) AS ISO 11654: 2002 (2016) ASTM C423 – 17
Weighted Alpha Coefficient (αw)
Direct fix: 0.30 (MH), 20mm air gap: 0.45 (MH), 50mm air gap: 0.60 (MH)
Noise Reduction Coefficient (NRC)
Direct fix: 0.43, 20mm air gap: 0.61, 50mm air gap: 0.75
Sound Absorption Class
D (Direct fix)
D (20mm air gap)
C (50mm air gap)
