EchoPanel® Empire

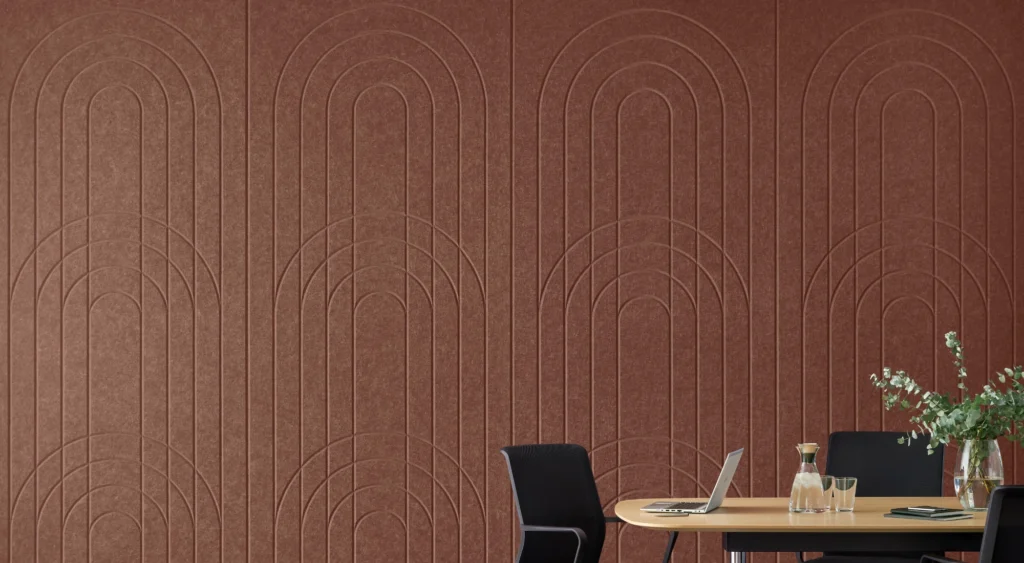

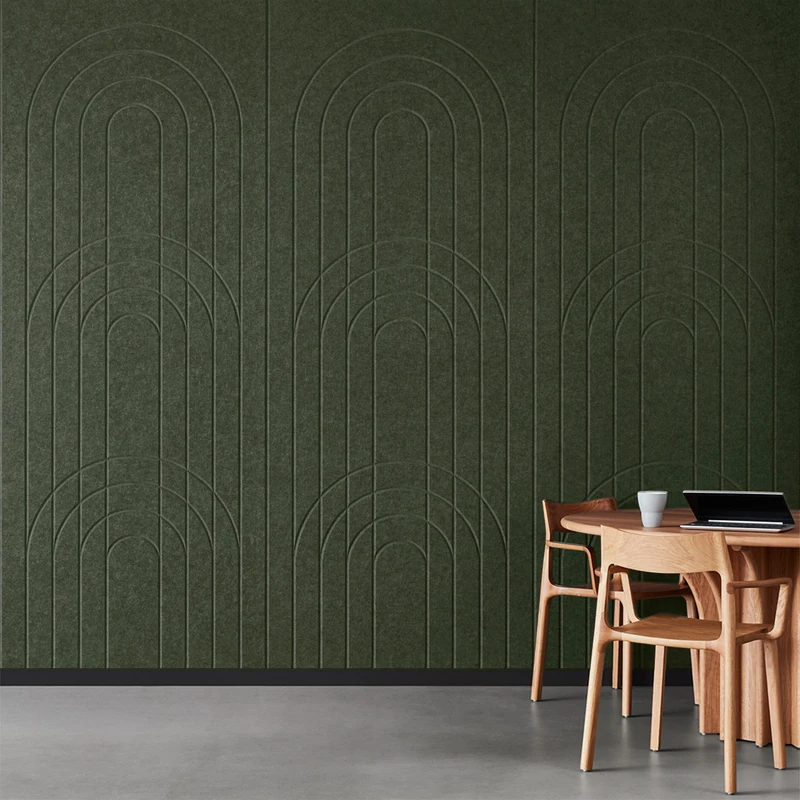

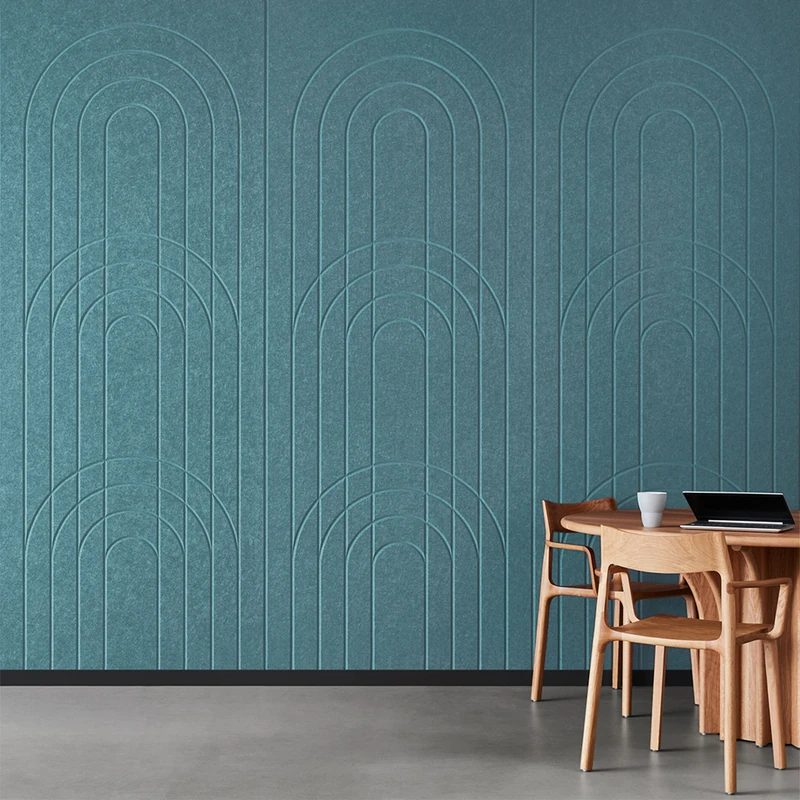

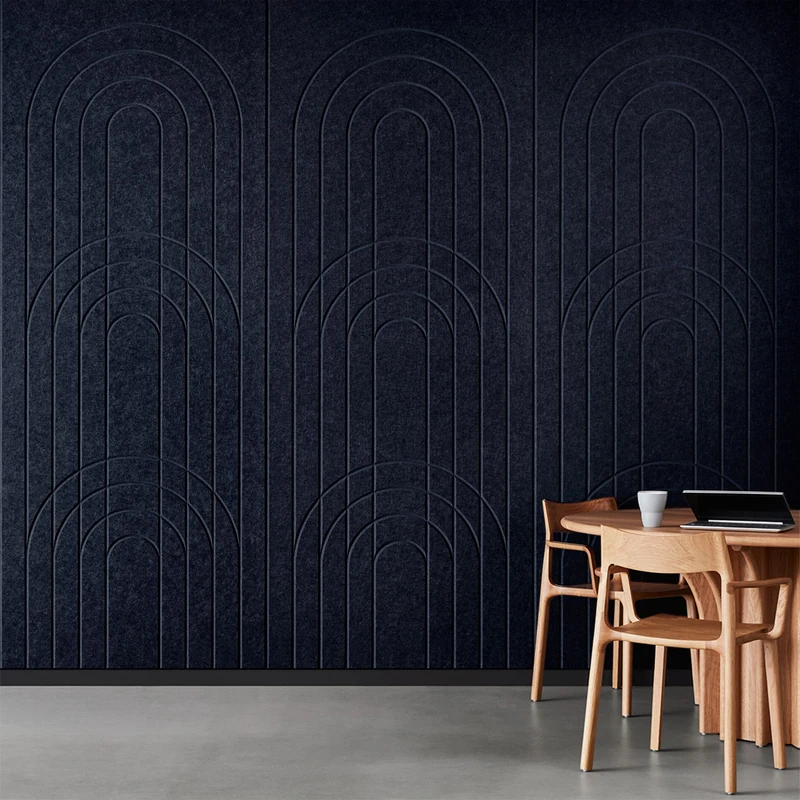

EchoPanel® Empire is the latest design in the precision cut acoustic panel collection.

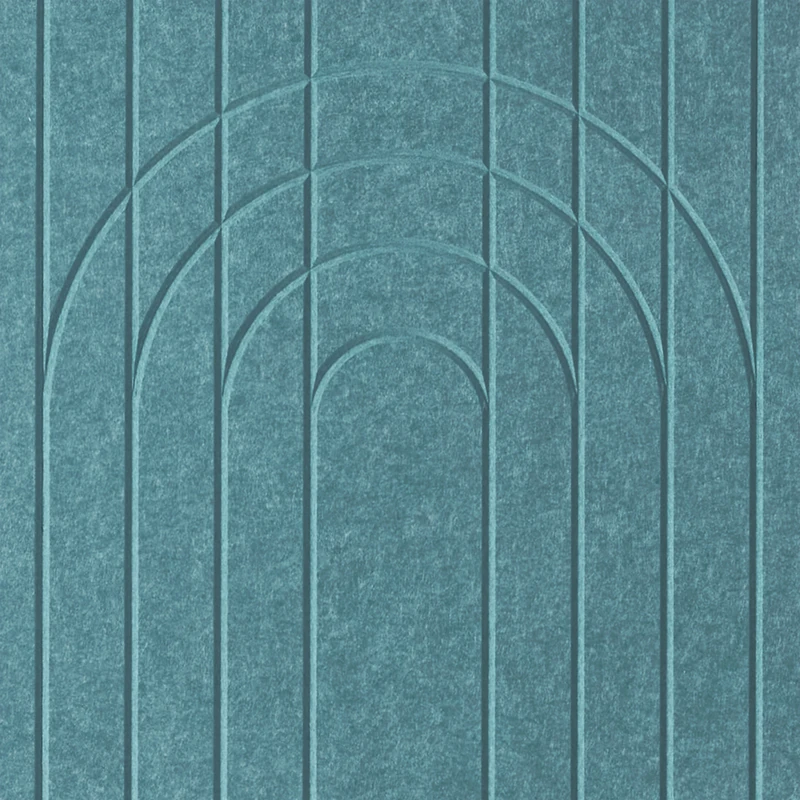

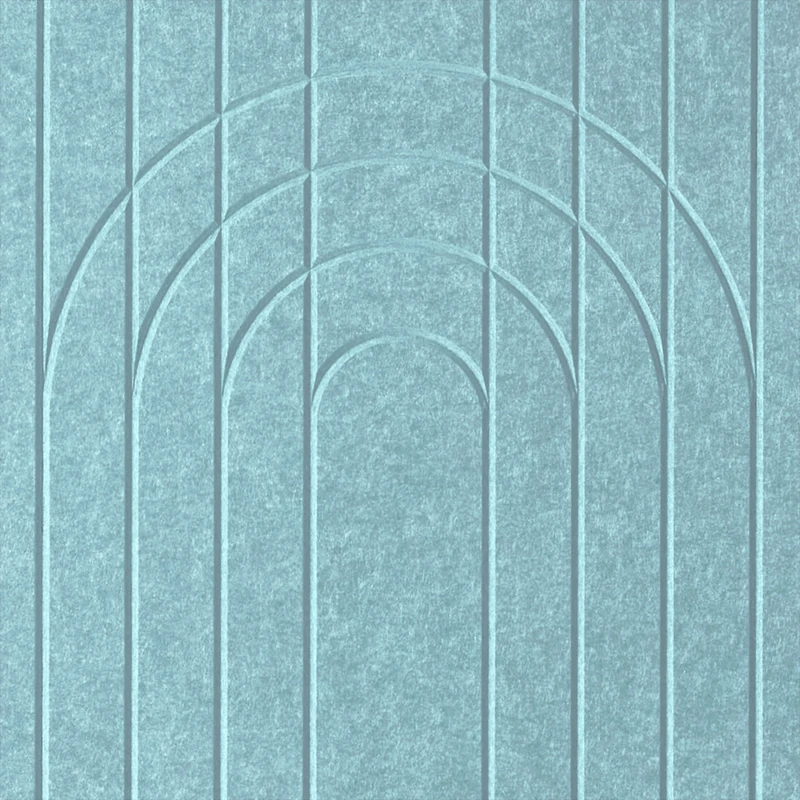

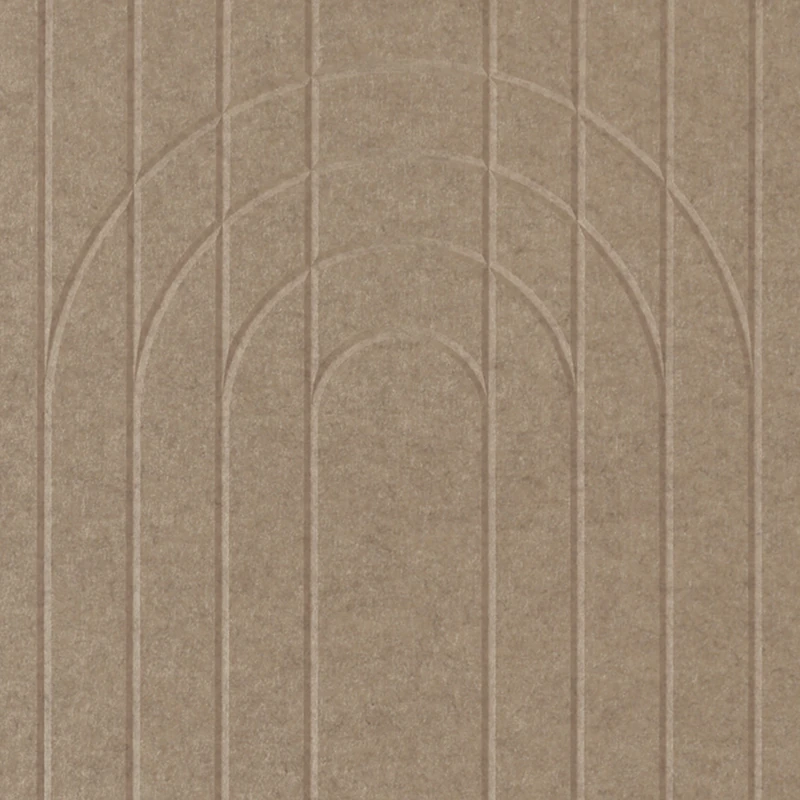

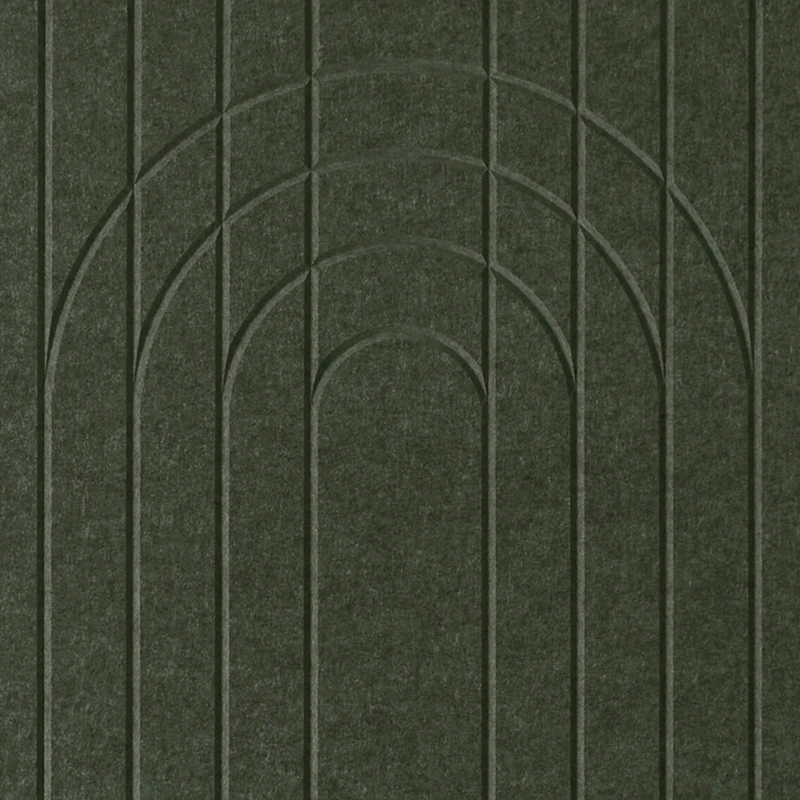

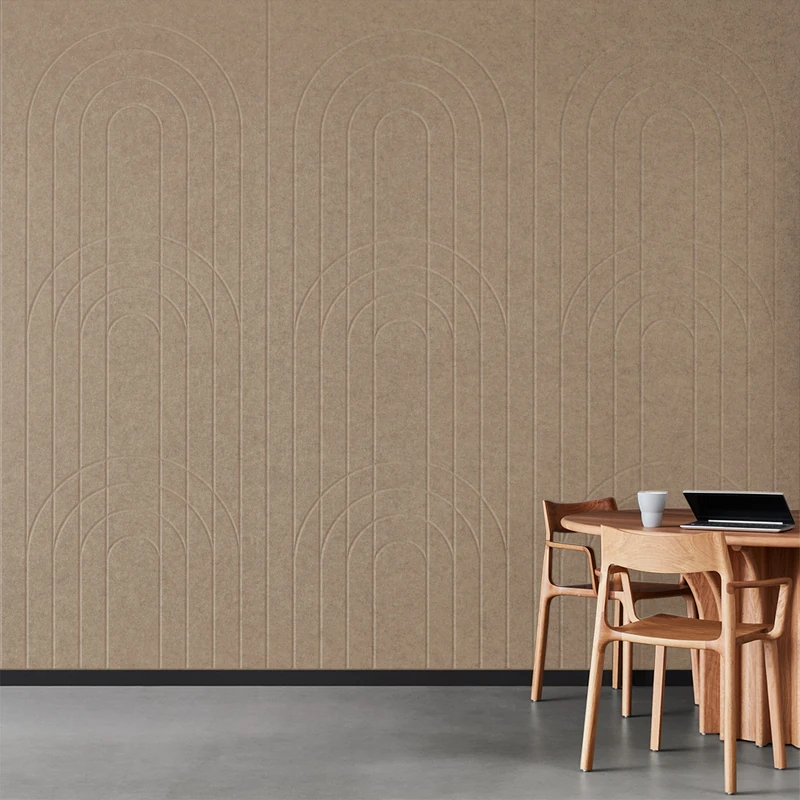

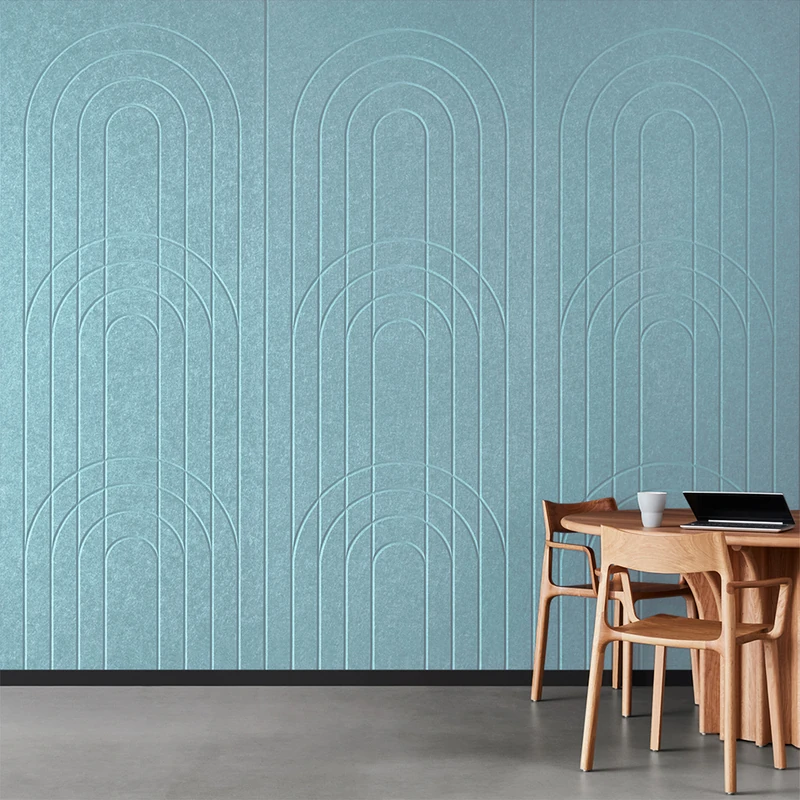

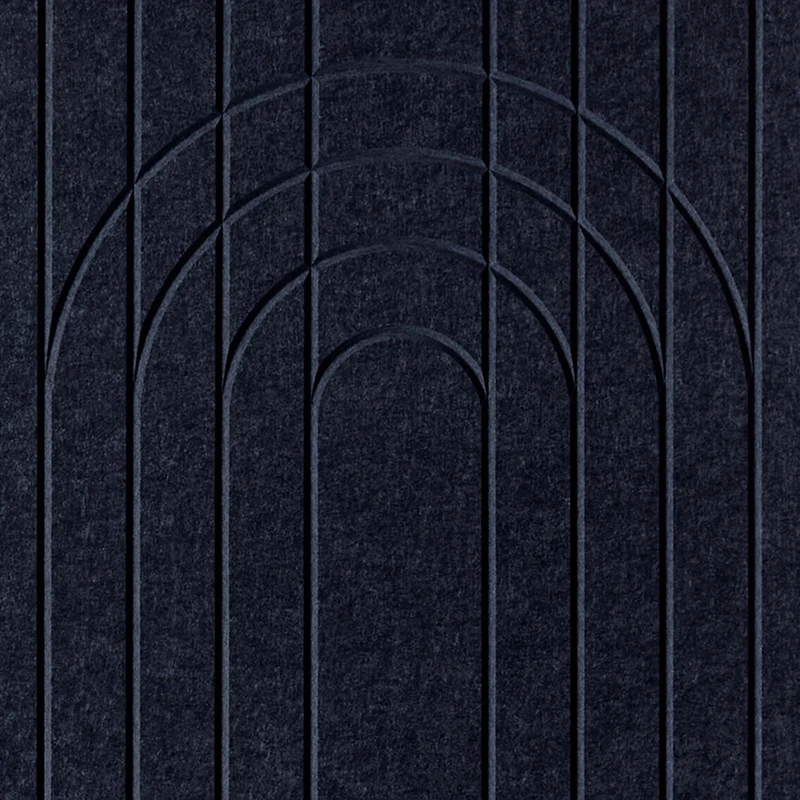

Cut from EchoPanel® 12mm and engineered with a bevel cut edge, the design beautifully balances arches and vertical line work. Empire can be installed seamlessly in combination with EchoPanel Longitude® for a design-driven, sustainable acoustic wall application. For higher acoustic performance, EchoPanel® Empire is available in EchoPanel® 24mm.
Product Specifications
Designer
Woven Image
Dimensions
Material (Composition)
100% PET (60% post-consumer recycled)
Fire Test Result:
AS 1530.3 BS EN 13501.1: Classification B – s1, d0 GB 8624 B1 ISO 9705: Group 1
Sound Absorption Test Method
AS ISO 354: 2006 (R2016) AS ISO 11654: 2002 (2016) ASTM C423 – 17
Weighted Alpha Coefficient (αw)
Direct fix: 0.30 (MH), 20mm air gap: 0.45 (MH), 50mm air gap: 0.60 (MH)
Noise Reduction Coefficient (NRC)
Direct fix: 0.45, 20mm air gap: 0.60, 50mm air gap: 0.75
Sound Absorption Class
D (Direct fix)
D (20mm air gap)
C (50mm air gap)
